for Stainless Steel

ACCURL fiber laser cutting machine1Kw - big innovation in technology, with exceptional reliability & high beam quality.

Advantages
  • With great flexibility, it is easy to cut non-ferrous metals, such as copper and brass. It shows exceptional quality.
  • Low production and maintenance costs due to low power consumption. No requirements for resonator gas.
  • The fiber laser machine is suitable for marking, finishing and detailing the pieces to be cut.
  • Unbeatable high output of fine thickness pieces.
  • The machine is easy to install and fast to put into service.
  • High cutting speed for the materials with thicknesses less than 4mm.
  • With the fiber laser machine, the cutting speed for the material of thicknesses less than 6mm is 5. If using N2 when operating, the speed can be 5 times faster.
  • The compact design takes up minimal space, but with no size limitation. The approximate lifecycle is between 4.000 and 5.000 hours.
  • The exceptional efficiency of the fiber laser greatly reduced electricity consumption. This machine is 86% more energy efficient than the CO2 laser.
  • Lens only need to be changed once a year, within an “optional clean room” environmentally controlled area. The same lens can be used for treating all materials in any thickness.
Characteristics
  • High output power
  • High quality of laser beam
  • Less focus, large focal distance
  • Coefficient of efficiency over 30%
  • Compact, solid and easy to install
  • Low operation cost
  • Flexible and durable fiber optic cable
  • High electrical efficiency
  • Lifespan of the diodes over 100,000 hours
  • Low requirements for cooling
Specifications
Model ECO-FIBER-1530 /IPG 1KW Fiber
Transmitting System Precise ball screw transmitting
Laser Power 1000W
Working Table 1500*3000 (mm)
Max running speed 60/min
X/Y location precision 0.03mm/m
Power supply 380v 50Hz
X/Y repeated location precision ±0.05mm
Machine gross power < 20KVA
Running temperature 0°C-40°C
Running humidity < 90%
Max. acceleration speed 1.5G
Machine body size 5080×3350×2000(mm)
Applied materials Thin mild steel, stainless steel and other kinds of metallic sheets;
Type IPG IPG IPG IPG IPG

YLS-700W
YLR-1 KW
YLR-2 KW
YLR-3 KW
YLR-4 KW
Output power 700 W 1000 W 2000 W 3000 W 4000 W
Material
Mild steel 8 mm 10 mm 16 mm 20 mm 25 mm
Stainless steel 3 mm 4 mm 8 mm 12 mm 15 mm
Aluminum 2.5 mm 3 mm 6 mm 12 mm 12 mm
Brass 1.5 mm 2 mm 3 mm 8 mm 8 mm
Copper 1.5 mm 2 mm 3 mm 8 mm 8 mm
Galvanized steel 2 mm 3 mm 4 mm 10 mm 10 mm

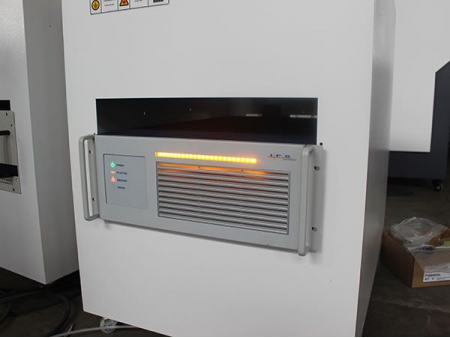

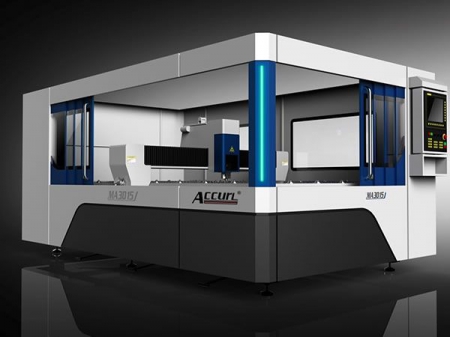

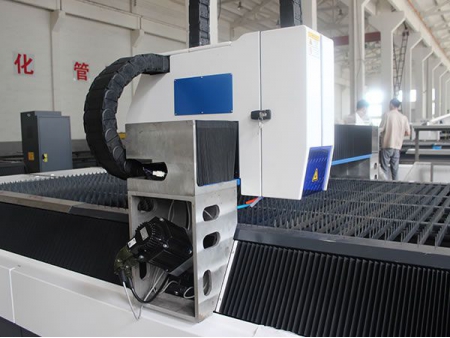

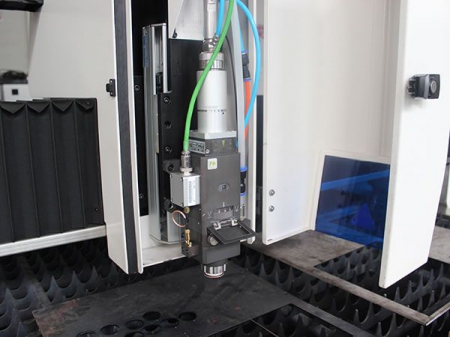

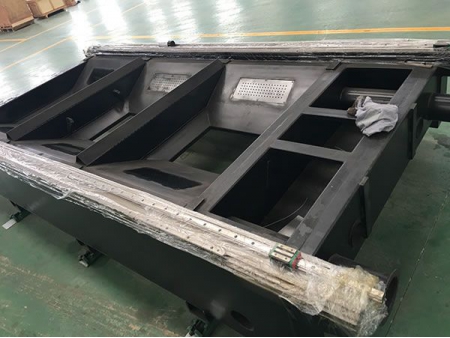

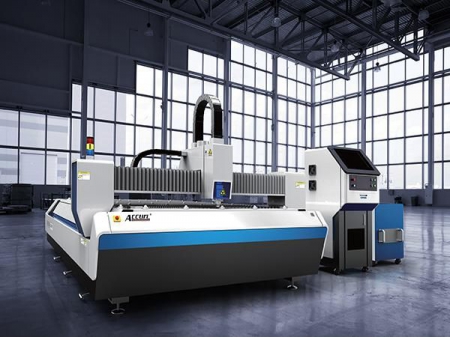

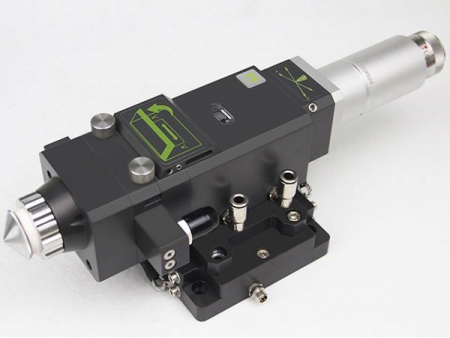

Detailed Pictures

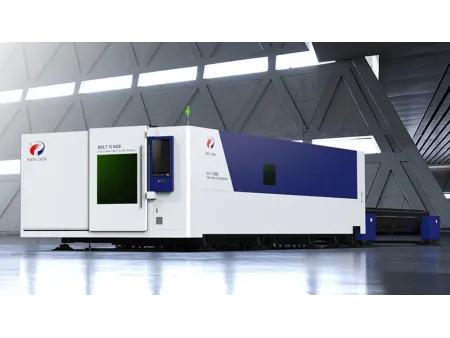

Related products
