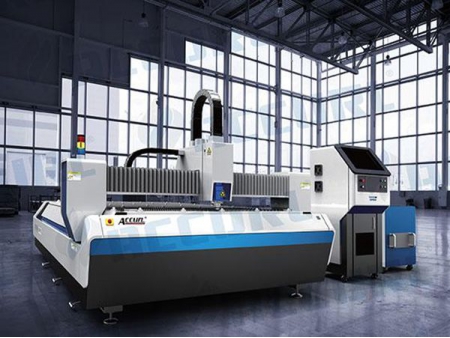

1000W IPG Fiber Laser CNC Cutting Machine
Request a Quote
ACCURL manufactures 1000w fiber CNC laser cutting machines that utilize the latest in tube and profile processing technology for fiber laser tube cutting systems. This series is the Smart KJG series, and features an exceptional reliability and high beam quality, earning it a top spot on the market.
Features
- 70% low electricity consumption in comparison with CO2 Laser
- Up to 300% faster cutting
- High wall plug efficiency (>30%)
- Flexible beam path
- Maintenance free
- Copper, brass cutting ability
- High output power
- High optical quality
- Compact size
- Reliability
Standard Equipment
- IPG YLS-1000W Ytterbium Laser Resonator
- Linear Driven X, U and Y Axes
- High Rigid Frame
- Empower or FAGOR CNC Controller
- Precitec Cutting Head
- Lantek Software
- Shuttle Table
- Chiller Unit
- Proportional Gas and Piping System
- Dust Filter
- Compressor
- Conveyor for Scraps
Specifications
| Laser power | 1000W IPG Fiber Laser |
| Laser source | Germany IPG fiber laser resonator |
| Processing surface (L × W) | 3000mm x 1500mm |
| CNC control | Shanghai FISCUT CypCut |
| Laser head | Switzerland Raytools |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric power | 14kW |
| Position accuracy X, Y and Z axle | 0.03mm |
| Repeat position accuracy X, Y and Z axle | 0.02mm |
| Maximum position speed of X and Y axle | 72m/min |
| Acceleration | 1g |
| Max load of working table | 1000kg |
| Drawing programming mode | AI, DWG, PLT, DXF format import directly |
| Machine weight | 5T |
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | |
Cutting Thickness Limit
| Material | Cutting Thickness Limit |
| Carbon steel | 12mm |
| Stainless steel | 6mm |
| Aluminum | 4mm |
| Brass | 3mm |
| Copper | 3mm |
Main Parts
| Article Name | Remark |
| Fiber laser resonator | IPG (Germany)/1000W |
| Servo motor and driver | DELTA (Taiwan) |
| Ball screw rod | HIWIN (Taiwan) |
| Liner guide | HIWIN (Taiwan) |
| Gear rack | YYC (Taiwan) |
| Laser head | RAYTOOLS (Switzerland) |
| Chiller | TONG FEI (China) |
| Controller | FISCUT (China) |
| Gas Proportional valve | SMC (Japan) |
| Reduction gear box | APEX (Taiwan) |
Detailed Pictures
- Framework by heat treatment
- IPG 1000w Fiber Laser Power
- Laser Cutting head

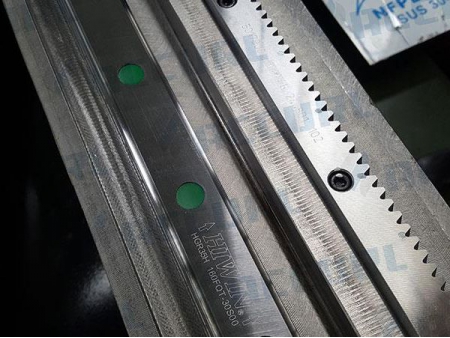

- Linear guide and Rack

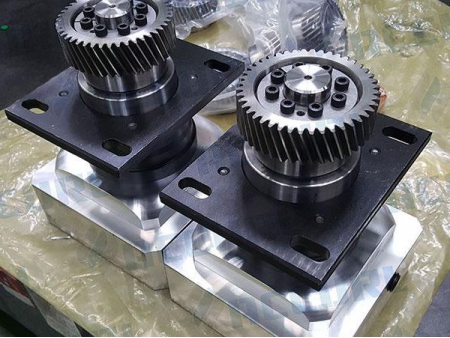

- Shimpo reduction gears from Japan
