Feature
The rotation friction stir welding machine has the following features:

1. It adopts movable beam so that it has good rigidity and better cost performance;
2. This welding machine adopts dimensional surface parallel welding: 0-12mm; micro welding: 0.2-1.2mm.
3. There is optional parallel welding.
4. The drive system of the lathe has the following advantages: simple structure, high driving precision and fast speed.
5. The lathe has high rigidity and good vibration resistance.

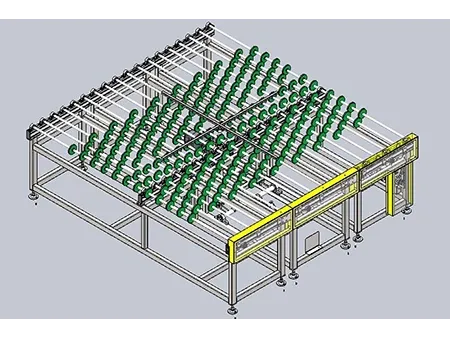

6. The machine is equipped with input and output roller conveyor, thus forming the production line.
7. Humanization designed control system has extremely high stability.
8. It adopts wireless hand wheel which can prevent wire intertwist.

Description
The rotation friction stir welding is a solid-phase jointing technique. During the rotation friction stir welding, a special cylindrical shaft shoulder and the pin-convex rotation head are rotated and inserted into the workpiece to be welded. The friction between the rotation head and the material to be welded will generate friction heat which can heat plastify the material. When the rotary unit goes forward along the side to be welded, the heat plastified material travels from the front of the rotation head to the back side, thus realizing solid-phase jointing between the work pieces by the assistance of of the machine forging.

Sample
Parameters of different product models
1. HMC650T Rotation Friction Stir Welding Machine
MODEL HMC650T HMC650TA
STRUCTURE TYPE Dual driven gantry
MAX WELDING THICKNESS Aluminum 40mm, copper alloy 20mm, May alloy 40mm
STROKE IN X AXIS 0-200mm
STROKE IN Y AXIS 0-900mm
STROKE IN Z AXIS 0-330mm
EXTERNAL SIZE OF MAIN PART 1900mm×2600mm×3170mm (L×W×H) 2800mm×2500mm×3170mm (L×W×H)
EXTERNAL SIZE OF WORK TABLE 1100mm×900mm(L×W) 1300mm×1200mm(L×W)
WORKING SPEED IN X AXIS 0-6000 mm/min
WORKING SPEED IN Y AXIS 0-6000 mm/min
WORKING SPEED IN Z AXIS 0-3000 mm/min
SWING AXIS(A AXIS) 0-5° Manual
CNC CONTROLLER Fagor8055,Siemens 828D(dependent on customer choice)
2. HMC650TBX Rotation Friction Stir Welding Machine
MODEL HMC650TBX
STRUCTURE TYPE Dual driven gantry
MAX WELDING THICKNESS Aluminum 40mm, copper alloy 20mm,May alloy 40mm
STROKE IN X AXIS 0-200mm
STROKE IN Y AXIS 0-900mm
STROKE IN Z AXIS 0-330mm
EXTERNAL SIZE OF MAIN PART 3500mm×2600mm×3400mm (L×W×H)
EXTERNAL SIZE OF WORK TABLE 1400mm×1100mm(L×W)
WORKING SPEED IN X AXIS 0-6000 mm/min
WORKING SPEED IN Y AXIS 0-6000 mm/min
WORKING SPEED IN Z AXIS 0-3000 mm/min
SWING AXIS(A AXIS) 0-5° Manual
CNC CONTROLLER Fagor8055,Siemens 828D (dependent on customer choice)
3. HMC650TD Rotation Friction Stir Welding Machine
MODEL HMC650TD HMC650TDX
STRUCTURE TYPE Vertical static gantry
MAX WELDING THICKNESS Copper alloy 0.1-1.5mm
STROKE IN X AXIS - 0-150mm
STROKE IN Y AXIS 0-1100mm 0-1100mm
STROKE IN Z AXIS 0-300mm 0-300mm
EXTERNAL SIZE OF MAIN PART 1140mm×1620mm×2500mm (L×W×H) 2500mm×1500mm×2200mm (L×W×H)
EXTERNAL SIZE OF WORK TABLE 500mm×1070mm(L×W)
WORKING SPEED IN Y AXIS 0-15000 mm/min
WORKING SPEED IN Z AXIS 0-4000 mm/min
SWING AXIS(A AXIS) 0-5° Manual
CNC CONTROLLER JINFENG,CHINA Fagor8055,Siemens 828D(dependent on customer choice
NOTE: We can design special spot welding machine for copper alloy or stainless steel sheet and belt.

Jinfeng introduction
The key part of the complete LCSG laser cutting machine is rack assembly which is carried out by CNC machining center. Meanwhile, it can be multi-surface processed. So the installation precision and machine service life can be ensured.
We have a technical team with 80 employees, providing R&D, design, training and after-sales service.
We have a specified and independent accessory warehouse with rich stock.
