Grooved pipe fittings

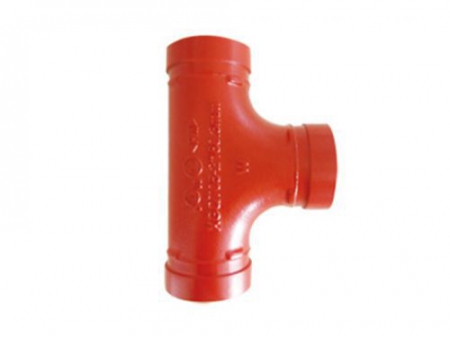

Grooved long radius equal tee is a type of tee fitting where the main and branch pipe have the same size. The neck of the long radius equal tee is longer compared to a standard equal tee. The branch pipe is perpendicular to the main pipe and the grooved end is connected to the pipe using couplings to provide changes in flow direction.

Recommended Applications
  • Grooved long radius equal tee is suitable for various industrial pipeline systems, such as chemical piping systems, deep-sea oil well piping systems, and more.
  • Connects pipe, provides changes in direction, and adapts to sizes or components
Key Specifications
  • Available sizes: 1 inch~12 inch |DN25~DN300
  • Working pressure: 300PSI/2.07MPa
  • Certificate: FM/UL/CE certified
  • Coating: epoxy /galvanized
  • Color: red/orange/white, etc.
Specifications

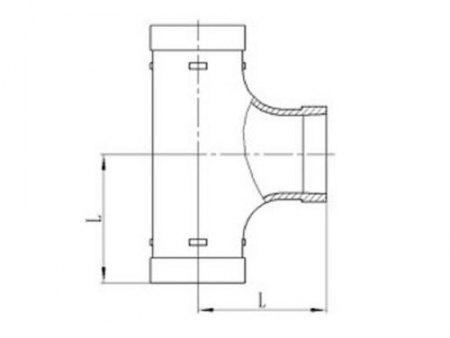

Nominal Size Pipe O.D. Dimensions
mm/in mm/in L mm/in
25 / 1 33.7 / 1.327 70 / 2.76
32 / 1 1/4 42.4 / 1.669 70 / 2.76
40 / 1 1/2 48.3 / 1.9 70 / 2.76
50 / 2 60.3 / 2.375 82 / 3.23
65 / 2 1/2 73 / 2.875 95 / 3.74
65 / 2 1/2 76 / 3 95 / 3.74
80 / 3 88.9 / 3.5 108 / 4.25
100 / 4 108 / 4.25 127 / 5
100 / 4 114.3 / 4.5 127 / 5
125 / 5 133 / 5.25 140 / 5.51
125 / 5 139.7 / 5.5 140 / 5.51
125 / 5 141.3 / 5.563 140 / 5.51
150 / 6 159 / 6.25 165 / 6.5
150 / 6 165.1 / 6.5 165 / 6.5
150 / 6 168.3 / 6.625 165 / 6.5
200 / 8 219.1 / 8.625 197 / 7.76
250 / 10 273 / 10.75 229 / 9.02
300 / 12 323.9 / 12.75 254 / 10
