Utility Tractor, 160-195HP
Request a Quote
YTO-ELG1604/ELG1754/ELG1954
Features
- The series of tractors are good versatile helpers in a wide range of farm work;
- The 6-cylinder high-pressure diesel engine that adopts the common rail, air cooling and turbocharged technology deliver high horsepower while using less fuel;
- 18F/6R gears produce high operation efficiency with the maximum speed up to 40km/h;
- The main clutch applying the air-assisted technology reduces pedal effort to ensure easy and convenient operation;
- The hydrostatic steering unit ensures precise control and requires less operator effort;
- The wet disc brake greatly improves tractor safety;
- Activating electro-hydraulic control PTO only needs pressing a button;
- Carraro’s front axle offers the advantage of high reliability and durability;
- The enclosed cab provides operator a wide view and a comfortable experience as it is equipped with a climate control system.
- Rear wheels, a radial tire and a gear shifting synchronizer are optional to improve tractors’ performance.

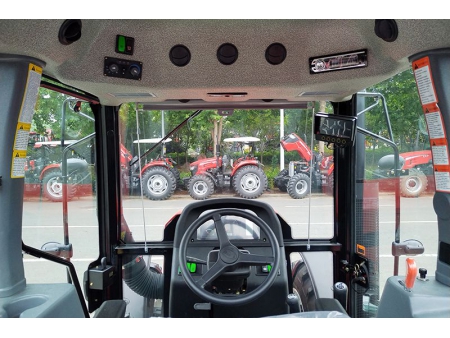

- Wide view

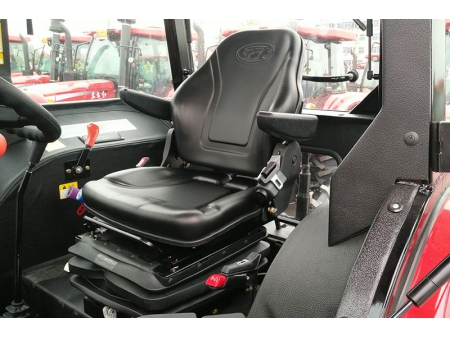

- Suspension seat
- Multifunctional dashboard
- Rear suspension
Specifications
| Model | ELG1604 | ELG1754 | ELG1954 |
| Engine type | Air-cooled 6-cylinder turbocharged diesel engine | ||
| Rated engine HP (kW) | 118 (160) | 128.6 (175) | 144 (195) |
| Engine speed (rpm) | 2200 | ||
| Clutch | Single action | ||
| Gears | 18F/6R | ||
| Speed range (km/h) | 2.0-39.0 | ||
| Brake | Wet, disc | ||
| Rear PTO (rpm) | 540/1000 | ||
| Lift capacity (pivot point) (kN) | ≥53 | ||
| Hydraulic multiplier (set) | 3 | ||
| Dimensions (L*W*H) (mm) | 5430*2335*3310 | ||
| Wheel base (mm) | 2790 | ||
| Ground clearance (mm) | 490 | Wheel track (F/R) (mm) | 1770-2208/1730-2342 |
| Min. turning radius (m) | 7±0.3 | ||
| Tyre (F/R) | 14.9-28/18.4-38 | ||
| Min. operating mass (kg) | 6580 | ||
