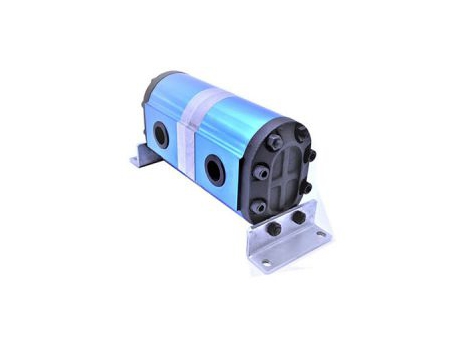

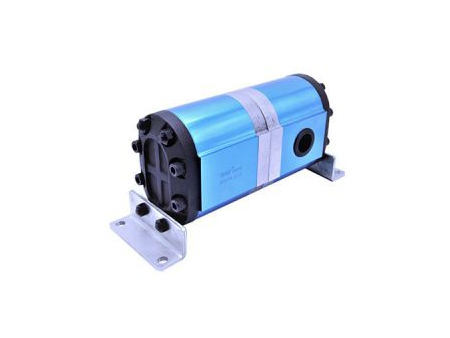

3FDF | 20-70ml/r
Gear Flow Divider
The 1AFDF series, alongside the 1FDF, 2FDF, and 3FDF, forms part of the quartet of gear flow dividers offered by GRH, engineered to cater to a displacement range of 1.6 to 70 ml/r. These dividers are designed to ensure the synchronized operation of actuators by connecting two or more gear motors via a coupler, achieving high synchronization precision. They are designed to integrate seamlessly with relief valves, check valves, and speed control valves, enhancing system protection and functionality. The precision of the flow dividers manufactured by GRH is notable, with accuracy reaching ±1.5% to ±2%.
Key attributes of the 1AFDF series include
- A displacement range from 2 to 7 ml/r, suitable for various applications.
- Ensures synchronized operation of actuators, vital for the seamless performance of hydraulic systems.
- High synchronization accuracy, contributing to the efficiency and reliability of operations.

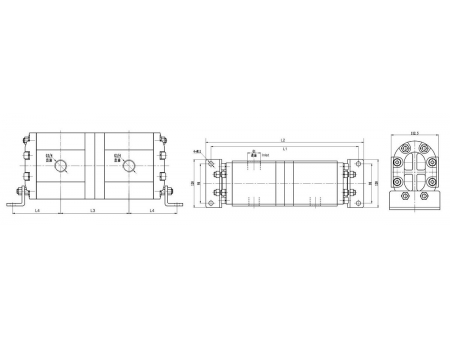

| Displacement | L1 | L2 | L3 | L4 |
| Cm³ | mm | mm | mm | mm |
| 20 | 552.4 | 578.4 | 122.5 | 92.3 |
| 30 | 582.4 | 608.4 | 130 | 96 |
| 40 | 610.4 | 636.4 | 137 | 99.5 |
| 50 | 636.4 | 662.4 | 143.5 | 102.8 |
| 60 | 668.4 | 694.4 | 151.5 | 106.8 |
| 70 | 696.4 | 722.4 | 158.5 | 110.3 |
The 3FDF series gear flow dividers are extensively applied in a broad range of sectors, notably in construction machinery and industrial equipment. Their capability to ensure high synchronization accuracy makes them indispensable in systems requiring precise flow distribution, such as boom truck cranes, aerial work platforms, tractors, harvesters, log splitters, and forklifts. This adaptability and precision enhance machinery efficiency and operational reliability, showcasing the 3FDF series' critical role in optimizing hydraulic system performance across various applications.
