Request a Quote
COLO-3210
Features

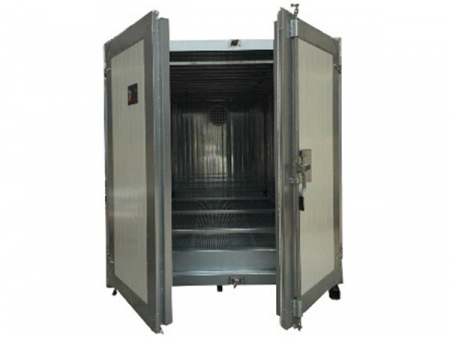

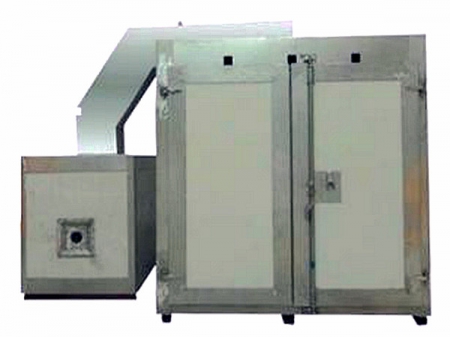

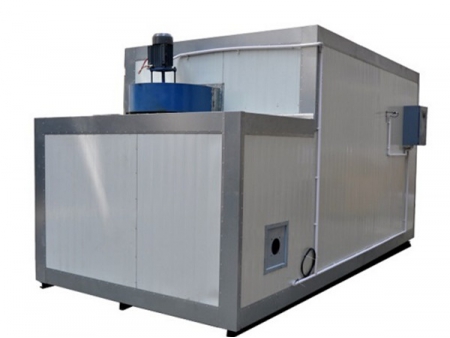

  • COLO-3210 industrial powder coating oven provides constant temperature and optimum curing environment for objects.
  • Working size of 1.9x2x3.1m suits for curing longer objects or big batches production requirements.
  • Taking natural gas or diesel oil or LPG as fuel is the best choice for the big sized oven, time-saving and cost-saving.
  • Fully assembled shipment, gives a quick start of your powder coating production.
  • Accept custom sizes & configurations as we have professional technical team.

Specifications

Model COLO-3210
Operating dimensions 2000 width x 1900 height x 3100 depth mm
Overall dimensions 2200 width x 2100 height x 3300 depth mm
Power supply LPG / natural gas / diesel
Voltage 220V/380V
Frequency 50-60 Hz
Warm-up time 15-30min (180°C)
Temperature stability <± 3-5°C
Temperature Max. 250°C
Ventilation performance 8288-16576m3/h
Motor power 4 kW
Burner Italy Riello, 100,000kcal
Details

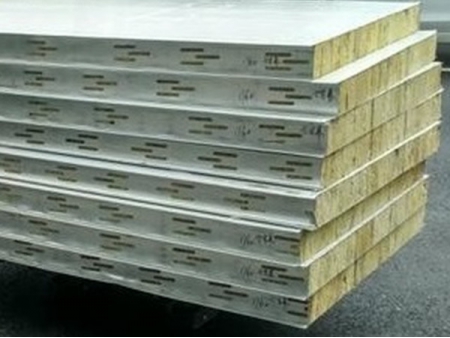

Oven Materials

  • The powder coating oven utilizes a sandwich structure design.
  • Rock wool board insulation of at least 100mm thick is inserted between galvanized inner wall and color-steel external skins to get an optimum insulation effect.

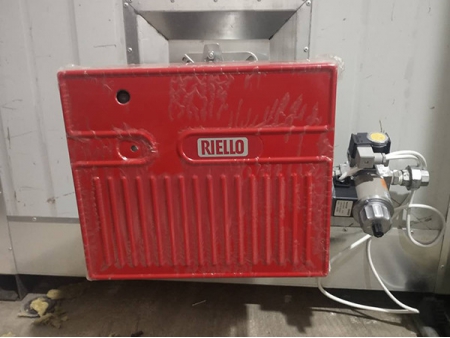

Burner

Italy imported Riello burner takes full utilization of fuels to warm the entire chamber and gives much quicker raise to a required temperature.

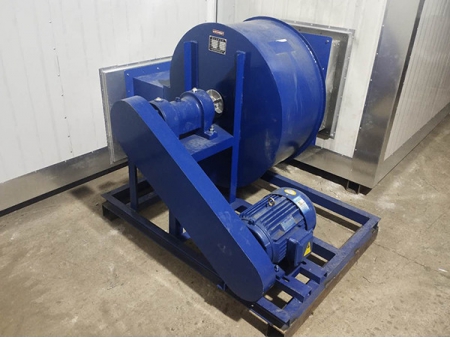

Circulation Fan

Thanks to the air circulation system, it creates optimal airflow throughout the entire powder coating oven enclosure, preventing hot spots and providing an even, constant cure for your parts.

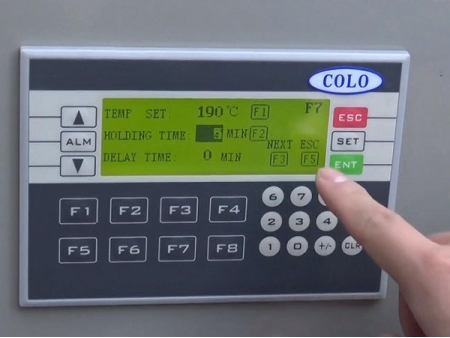

PLC Controller

  • The heating unit and fan system are controlled via the PLC controller.
  • Operators could accurately set the desired temperature and heating time on the panel. Data will be shown on the LED screen clearly.

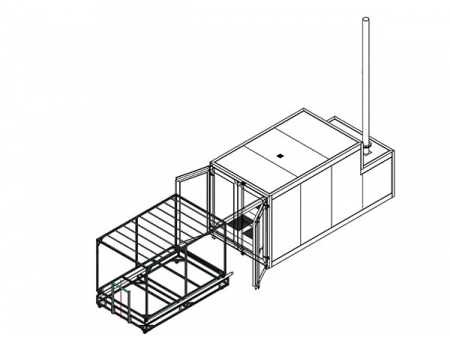

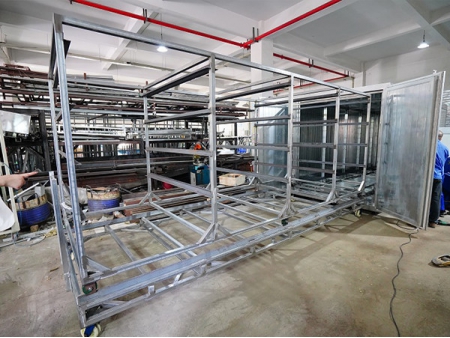

Transport System

Two sets of trolleys equipped ensure high purity painted elements. The internal trolley with loaded workparts will be pushed into the oven for curing circles, whose castor movement across the track makes it less manual efforts of operation. External trolley helps to carry the internal trolley for outside transportation.
