Vial Filling and Stoppering Machine

Vial Filling and Stoppering Machine
Request a Quote

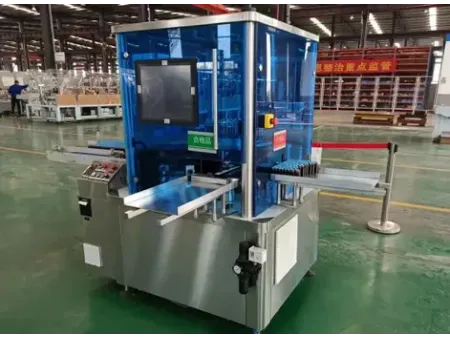

The KGF vial filling and stoppering machine is suitable for stoppering and filling of 2 to 20 ml antibiotic vials. Typically, it is used to fill vials with water injection and lyophilized powder injection. The machine adopts servo drive bottle conveying, linear tracking filling and linear stoppering. It can automatically finish processes such as bottle collating, bottle feeding, empty bottle weighing, filling, weighing after filling, stopper collating, stoppering, defective product removing, and bottle discharging.

Main Characteristics
  • Applicable specification: 2~20 ml vials
  • Capacity: 6000~24000 bottle/h
  • Filling heads: 8-12
  • Filling form: servo motor controlled peristaltic pump
  • Filling accuracy: ≤±1 %
  • Stoppering heads: 8-12
  • Stoppering qualification rate: ≥99.8 %
  • Net weight: 2800 kg
  • Dimension: 4880×1310×2450 mm
Performance Characteristics
  • The vial filling and stoppering machine operates reliably and precisely. Different product shifting is program controlled and automatically adjusted.
  • It doesn't need lubricant maintenance so as to avoid cross contamination.
  • According to new GMP requirements, the vial filling and stoppering equipment is equipped with airborne microbe and dust particle detection device, which is precise and has auto data saving, ongoing data acquisition, automatic alarming and shutdown functions. In addition, it is fitted with RABS isolation device, weighing device and defective products removing device. Moreover, the rubber stopper uses α valve and β valve sterile docking device, which can realize the separation of medicine filling and manual operation, thus greatly reducing pollution and operation risks.

As an experienced vial filling and stoppering machine manufacturer and supplier in China, IVEN Pharmatech provides a wide range of products that includes vertical ultrasonic vial cleaner, glass bottle unloading machine, sterilizing dryer, and more.
