Cement Head
Cement Head

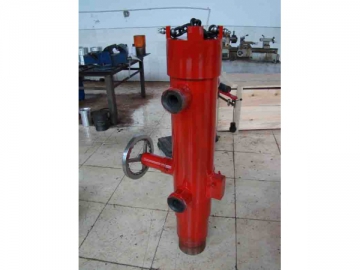

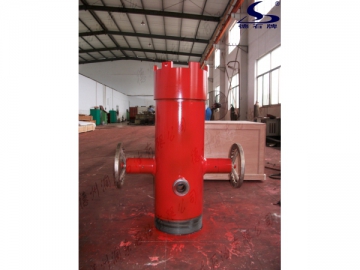

TheDSD double plug cement head is a common cementing tool used in all kinds of wellcementing operation. Compared to single plug cement head, the double plug type haslonger body and additional top and bottom cement plugs.
Features
1. The DSD double plug cement head providessimple structure, easy operation, high pressure resistance and wideapplications.
2. With quick coupler, the cement headcan connect with API casing buckle and drill pipe buckle.
3. The double plug cement head suits continuoustwo stage cementing, in addition to general well cementation.
4. The lever type indicator showswhether the rubber plug enters the casing through the double plug cement head. Thisfacilitates proper operation by users.
5. The plug container comes with balancepipe, which makes it easy for users to open the bumper pin.
Parameters
| Model | DDS | ZDS | |||||
| Specifications (mm) | Φ139.7 | Φ177.8 | Φ244.5 | Φ339.7 | Φ73 | Φ88.9 | Φ127 |
| Total length (mm) | 1400 | 1450 | 1700 | 1700 | 910 | 1012 | 1125 |
| Manifold | Φ50.8 2″Union | ||||||
| Inner diameter. of plug container (mm) | 125 | 160 | 225 | 320 | 52 | 72 | 100 |
| Length of plug container (mm) | 450 | 450 | 550 | 550 | 290 | 340 | 405 |
| Max. operating pressure (MPa) | 35 | 35 | 35 | 20 | 35 | 35 | 35 |
