Compact Utility Tractor, 45-55HP
Request a Quote
YTO-ESK454G/ESK504G/ESK554G
Features

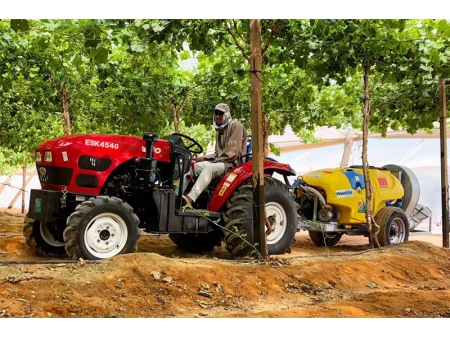

- Designed for tight spaces in low-clearance orchards and forested areas, this compact tractor is built for precision. Its steering wheel is 1180mm above the ground.
- The efficient naturally aspirated diesel engine provides strong, reliable power with low fuel consumption.
- Small turning radius of the front axle makes maneuvering in confined areas easy.
- Rear wheels adjust seamlessly to meet various agricultural needs.
- Hydrostatic steering offers smooth, effortless control.
- Tractor mounted sprayer

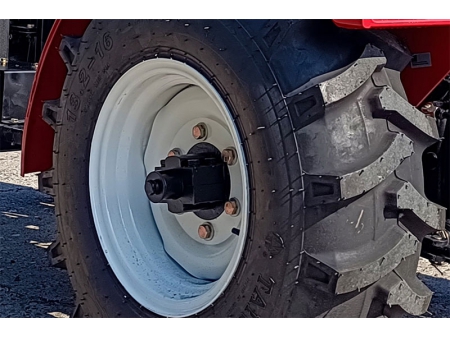

- Rear wheel sliding shaft with stepless adjustment
- Rear suspension
Specifications
- W=1262mm
- H=1180mm
| Model | ESK454G | ESK504G | ESK554G |
| Engine type | 4-cylinder, natural aspiration diesel engine | ||
| Rated engine power kW(hp) | 33.1(45) | 36.8(50) | 40.5(55) |
| Rated engine speed (rpm) | 2400 | ||
| Clutch | Single action | ||
| Gears | 8F 2R | ||
| Speed range(km/h) | 0.44-33.48 | ||
| Brake | Wet, disc | ||
| Rear side PTO (rpm) | 540/720 | ||
| Lifting force (link joint) (kg) | ≥1200 | ||
| Hydraulic output(set) | 1 or 2 | ||
| Overall dimensions (L*W*H) (mm) | 3280*1262*1180 (steering wheel) | ||
| Wheel base(mm) | 1830 | ||
| Ground clearance(mm) | 280 | ||
| Wheel track(mm)(F/R) | 1000 /1100-1200 | ||
| Min. turning radius(m) | 4.0±0.3 | ||
| Tyre(F/R) | 6.0-14 / 13.6-16 | ||
| Total mass (kg) | 1870 | 1880 | |
