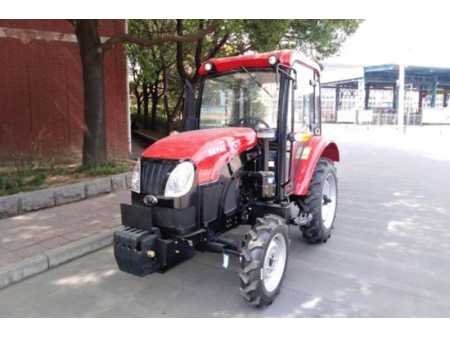

Compact Utility Tractor, 24-55HP
Request a Quote
YTO-SK244(254)/ESK404/ES454/ESK504
Features
- The series of tractors can easily handle field chores and transportation work;
- The naturally aspirated diesel engine produces high horsepower with low fuel consumption;
- 8F/2R gears with a side shift lever enable easy and convenient operation;
- The hydrostatic steering unit ensures precise control and requires less operator effort;
- The step-less adjustment of rear wheel track enables smooth change to meet various needs;
- We provide optional air brake systems and a high-pressure lifter.
- Enclosed cab
- Side gear shift lever
- Air brake systems
- Transportation function
Specifications
| Model (without ROPS) | SK244 (254) | ESK404 | ESK454 | ESK504 |
| Engine type | 3-cylinder naturally aspirated diesel engine | 4-cylinder naturally aspirated diesel engine | ||
| Rated engine HP (kW) | 17.7 (24) | 29.4 (40) | 33.1 (45) | 36.8 (50) |
| Engine speed (rpm) | 2300 | 2400 | 2300 | |
| Clutch | Single action | |||
| Gears | 8F/2R | |||
| Speed range (km/h) | 1.74～25.7 | 2.17～33.11 | 1.95-28.8 | |
| Brake | Dry, horseshoe | |||
| Rear PTO (rpm) | 540/1000 | |||
| Lift capacity (pivot point) (kN) | ≥7 | ≥9.75 | ≥10.8 | |
| Hydraulic multiplier (set) | 1 or 2 | |||
| Dimensions (L*W*H) (mm) | 3480*1465*1900 | 3600*1485*1940 | ||
| Wheelbase (mm) | 1650 | 1830 | 1850 | |
| Ground clearance (mm) | 275 | 300 | ||
| Min. turning radius (m) | 3.8±0.3 | 4.0±0.3 | ||
| Wheel track (F/R) (mm) | 1200/1100～1300 | |||
| Tyre (F/R) | 6.00-16/9.5-24 | 6.50-16/11.2-24 (Option: 7.50-16/11.2-28) | ||
| Min. operating mass (kg) | 1460 | 1570 | 1600 | |
