Compact Utility Tractor, 45-55HP
Request a Quote
YTO-EME454/NME504/NME554
Features
- The series of tractors are designed with a nice-looking appearance and a compact structure to suit field chores and transportation work;
- The naturally aspirated 4-cylinder diesel engine produces high horsepower with low fuel consumption;
- 8F/4R gears with side shift lever enable easy and convenient operation;
- The final transmission adopts a planetary gear reducer and it is load-balanced and long-lasting;
- The wet disc brake results in reliable and smooth stop;
- The hydrostatic steering unit ensures precise control and requires less operator effort;
- The dual speed PTO meets various farming needs, such as, rotary tillage;
- We provide optional air brake systems and a high-pressure lifter.

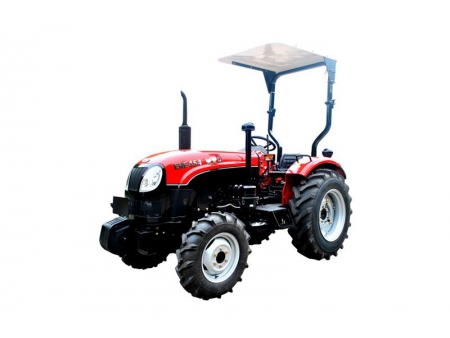

- Open station

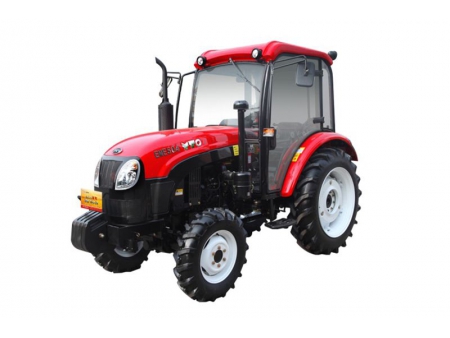

- Enclosed cab
- Wide view
- High-pressure lifter
Specifications
| Model (with ROPS) | EME454 | NME504 | NME554 |
| Engine type | Naturally aspirated 4-cylinder diesel engine | ||
| Rated engine HP (kW) | 33.1 (45) | 36.8 (50) | 40.5 (55) |
| Engine speed (rpm) | 2300 | 2200 | |
| Clutch | Dual action | ||
| Gears | 8F/4R (Option:16F/8R) | 8F/4R (Option: 8F/8R or 16F/8R) | |
| Speed range (km/h) | 2.46-33.22 | 2.36-30.88 | 2.255-29.53 |
| Brake | Wet, disc | ||
| Rear PTO (rpm) | 540/1000 | ||
| Lift capacity (pivot point) (kN) | ≥10.9 | ||
| Hydraulic multiplier (set) | 1 or 2 | ||
| Dimensions (L*W*H) (mm) | 3660*1485*2720 | 3675*1515*2720 | |
| Wheelbase (mm) | 1830 | 1840 | |
| Ground clearance (mm) | 300 | ||
| Min. turning radius (m) | 3.8±0.3 | ||
| Wheel track (F/R) (mm) | 1200/1200-1400 | ||
| Tyre (F/R) | 7.50-16/11.2-28 | ||
| Min. operating mass (kg) | 1820 | 1930 | |
