Mining Screen / Sieving Screen / Mesh Screen

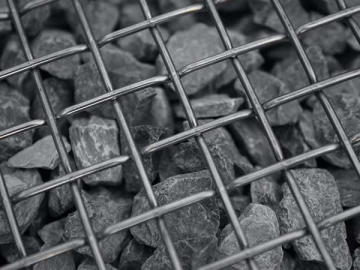

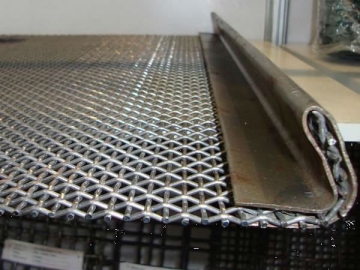

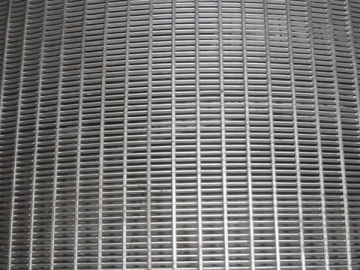

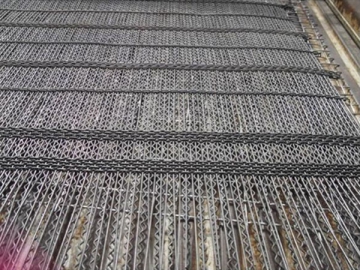

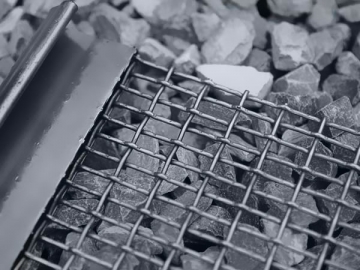

The mine screen mesh is produced for heavy duty use in some of the most rigorous industrial applications. The mesh screen can be produced using 65Mn steel, spring steel, carbon iron wire, galvanized steel wire or stainless steel wire (SS201, 202,302, 304,304L, 310,316,316L).

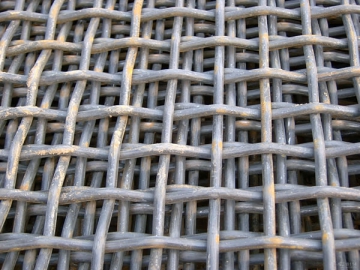

The wires are crimped and then woven.

The weave types of the product shown below are in accordance with ISO4783/3 standards.

Specification

Wire diameter (mm)	Aperture(mm)	Wire diameter(mm)	Aperture(mm)
22.0	200	4.0	15
20.0	180	3.2	30
16.0	150	3.0	30
16.0	120	3.2	25
12.0	100	3.0	25
12.0	90	2.6	30
12.0	80	2.5	30
12.0	75	2.6	25
12.0	70	2.5	25
10.0	60	2.6	20
10.0	50	2.5	20
9.0	45	2.0	25
8.0	40	1.9	25
7.5	38	2.0	20
7.0	37.5	1.9	20
7.0	35	2.0	18
7.0	32.5	1.9	18
6.5	32	2.0	15
6.0	30	1.9	15
6.0	27.5	2.0	12
6.0	25	1.9	12
6.0	20	2.0	10
5.0	25	1.9	10
5.0	22.5	1.6	15
5.0	20	1.5	15
4.5	22	1.6	12
4.5	17.5	1.5	12
4.5	15	1.6	10
4.0	20	1.5	10

Wire Diameter and Mesh List

Wire diameter (mm)	Aperture(mm)	Wire diameter(mm)	Aperture(mm)
2.0--1.6	3mesh	1.0－－0.6	10mesh
1.8--1.2	3.5mesh	0.8－－0.5	12mesh
1.6--0.7	4mesh	0.7－－0.5	14mesh
1.6--0.6	5mesh	0.60－－0.4	16mesh
1.5--0.8	6mesh	0.6－－0.4	18mesh
1.2--0.7	8mesh	0.5－－0.35	20mesh
