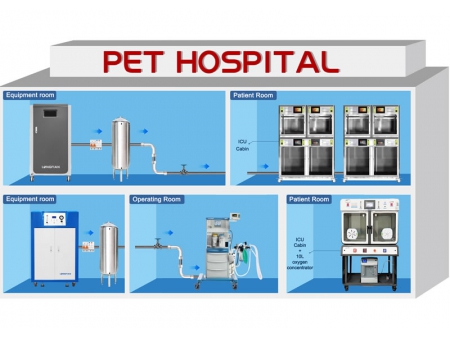

Longfian innovative oxygen generating system is designed for hospitals and clinics with 5-100 beds. The system includes PSA oxygen generator, buffer tank, booster pump, high pressure oxygen compressor, etc. It represents higher medical standard and a true sense of innovation.

Technical Parameters
Model JAY-10D JAY-40 JAY-60
Flow Rate 1-20L/min 1-40L/min 1-60L/min
Oxygen Purity 93% (±3%)
Outlet Pressure 6-10 PSI (0.04-0.07 Mpa) 20PSI (0.14Mpa)
Sound Level ≤ 55dB ≤ 58dB ≤ 60dB
Net Weight 93kg 160kg 245kg
Power Consumption ≤ 1100W ≤ 2200W ≤ 3300W
Input Frequency 50Hz; 60 Hz
Input Voltage AC 230V±10%; AC 110V ±10%
Alarm 1. Power failure alarm
2. High & low pressure alarm
3. Low oxygen concentration alarm
    Features
  • It offers an economic, reliable and safe alternative to traditional oxygen system.
  • The design is made for 24/7 operation.
  • It is equipped with automatic start & stop function.
Application
  • For hospital with 5-100 beds
  • For anesthesia machine in operating room
  • For ventilator in Intensive Care Unit (ICU)
  • For high pressure cylinder filling plant
