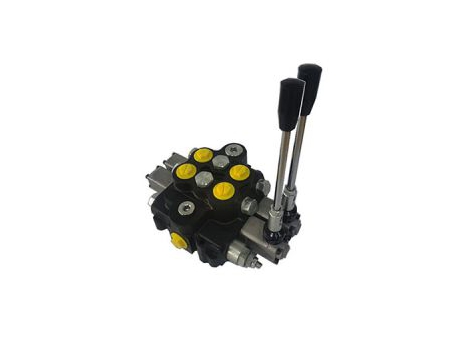

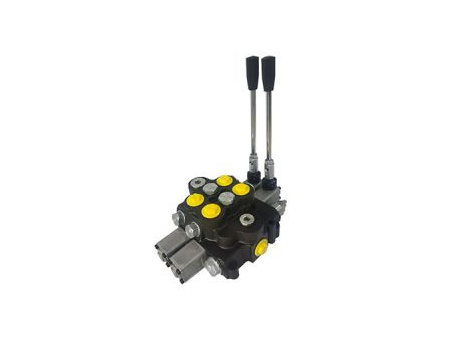

GDV120 | 120-130L/min
Monoblock Directional Control Valve
As a key offering in the lineup of six monoblock directional control valve series, the GDV120 stands out with its ability to handle a flow range from 25 to 170 L/min. Featuring a wide selection of spool options, it is adept at controlling double-acting cylinders, single-acting cylinders, and hydraulic motors. Engineered for versatility and precision, this series meets the complex requirements of various hydraulic systems, ensuring efficient and reliable operation in a multitude of settings.
Features
- Valve body is made from integral grey cast iron.
- Spring cap, mechanical detent cap and electro-hydraulic driver module are made from die-cast aluminum.
- Optional power beyond.
- Optional mechanical positioning.
- Spool with various functions is available: for controlling dual-acting cylinder or single-acting cylinder, spool for hydraulic motor.
- Small operating force and excellent flow characteristics.
- Spool number: 1 - 4 can be assembled (now only1 spool is available).
| Rated Flow | 120L/min |
| Max Flow | 130 L/min |
| Max Pressure | 310 bar |
| Internal leakage (70 bar): A/B to T | 30-35 CC/min |
| Fluid Temperature Range | |
| With NBR(BUNA-N) Seals | -20C° -80C° |
| With FPM (VITON) Seal | -20C° - 100C° |
| Spool Stroke (1/2position) | 7/-7mm |
| With Floating Function (1/2 and F position) | 7/-7 -9mm |
| Viscosity Range | 15-75mrrT2/s |
| Ambient Temperature Range | -40C° -60C° |
| Solenoid can be either 12VDC or 24VDC, corresponding current is 0-1.5 or 0-0.75 Amp. | |
Widely used across a broad variety of machinery, the GDV120 series significantly boosts the operational efficiency of industrial devices, farm equipment, and construction vehicles. It's particularly effective in systems like wheel loaders, forklifts, and log splitters, demonstrating a flexible and dependable solution for precise hydraulic control in demanding applications.
