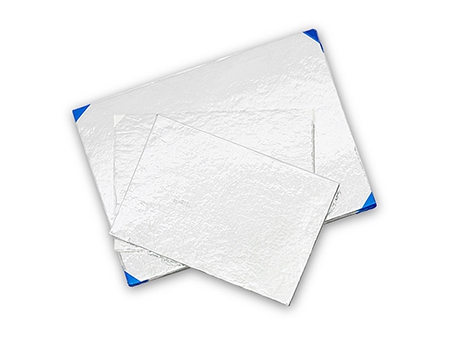

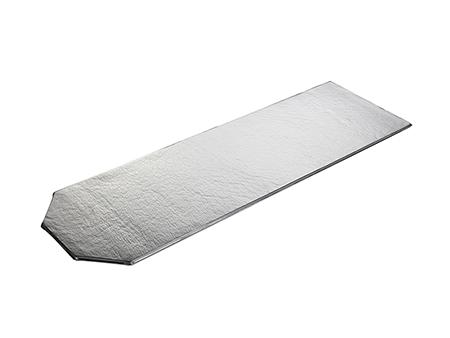

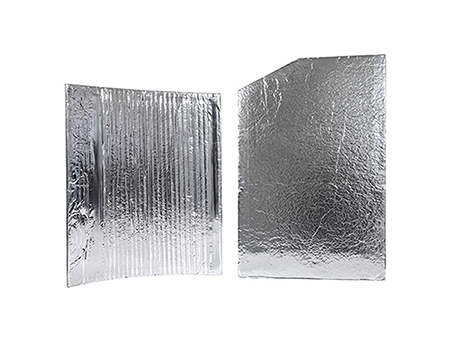

High Efficiency Vacuum Insulation Panel (VIP)
Vacuum insulation panel based on fiberglass core material, a new energy-efficient insulation material following the adiabatic principle for insulation, consists of three major parts: fiberglass core materials, getter materials/desiccants and high barrier laminates. As a special composite made of core materials and protective layers, it is integrated with the superiority of vacuum insulation and micro-pore heat insulation, effectively stopping convective heat transfer to perfect thermal insulation. With an excellent initial thermal conductivity of lower than 0.0025 W/m. K and even 0.0015w/m.k to the minimum, the thermal resistance of our vacuum insulation panel based on fiberglass core material is ten times higher than conventional insulation material and even more. Compared with traditional PU insulation materials, energy-saving and environment-friendly vacuum insulation panel contains no ODS (ozone depleting substances) in its manufacturing process and widely applying to thermal insulation products such as refrigerators, freezers, refrigerated trucks, cold storages, insulated shipping container, ice storage tanks, etc.
What the Features of High Efficiency Vacuum Insulation Panel (VIP)
- Excellent initial thermal conductivity of less than 0.0015 W/m. K
- 6-11 micron diameter of fiberglass core material in compliance with EU standards
- Lower price and thermal conductivity compared with fumed silica core material
- Customized size: 5-30mm thickness, Max Width 800mm, Max Length 1800mm
- Thermal resistance effect is 8~10 times more effective than traditional materials
- Perfomes optimally in environments from -40℃~80℃
Application Examples

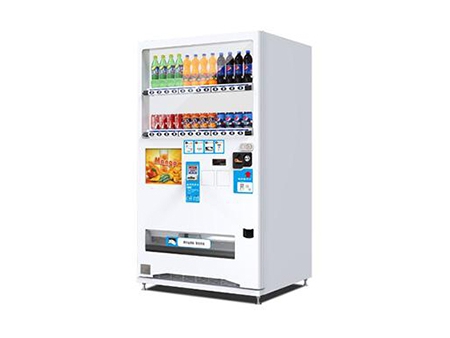

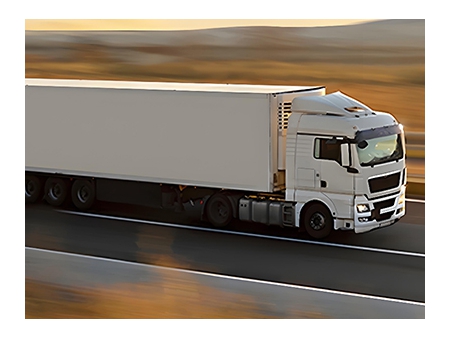

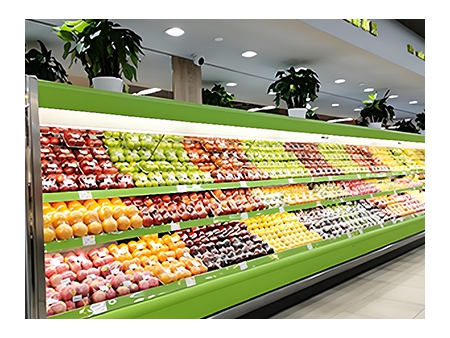

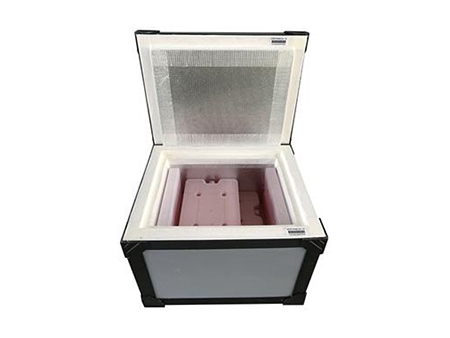

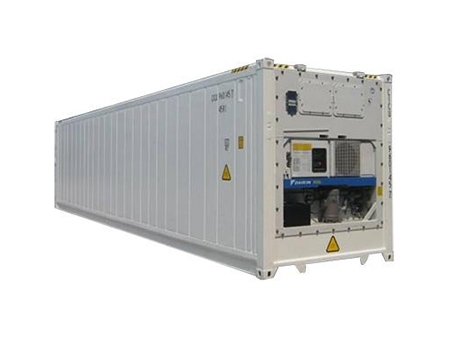

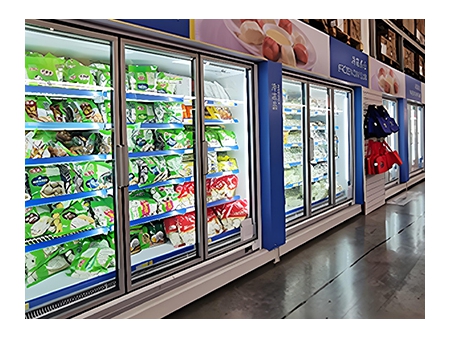

Vacuum Insulation Panel for Temperature Controlled PackagingVacuum Insulation Panel for Refrigeration AppliancesVacuum Insulation Panel for Insulated Shipping ContainerVacuum Insulation Panel for Frozen Food Display CaseVacuum Insulation Panel for Refrigerated TruckVacuum Insulation Panel for Display FreezerFujian Saitech New Material Co., Ltd. is an industry-leading quality provider of systematic solutions in the field of vacuum insulation and energy saving, and a national high-tech enterprise, which started in 2007 and was listed on the A-share board of the Science and Technology Innovation Board of the Stock Exchange of China in February 2020 (stock abbreviation: Saitech New Material, stock code: 688398).
The company is headquartered in Longyan, Fujian, with five subsidiaries, including Firm, VIG, Sait Cold Chain, Sait Building Materials and Anhui Sait. The main business covers the research, development, production and sales of vacuum insulation panels (VIP) and ultra-fine glass wool core material, vacuum insulation glass (VIG), barrier film, adsorbent, vacuum encapsulation product performance testing, etc., serving the global refrigerator leader and expanding the cold chain, construction and other diversified applications.
The company has a strong technical research and development strength, master the vacuum insulation plate of the whole link of independent innovation of the core technology, access to a variety of national core patents amounted to 115, is an important industry standard maker, is the vacuum insulation material industrialization promoter.
The company's series of products are sold all over the world, among which, the domestic market share of vacuum insulation panels exceeds 30%; the cumulative global sales volume exceeds 35 million square meters. With intelligent and integrated production capacity, the company will continue to provide systematic insulation and energy-saving solutions for the world and take care of the new green life of human beings!
