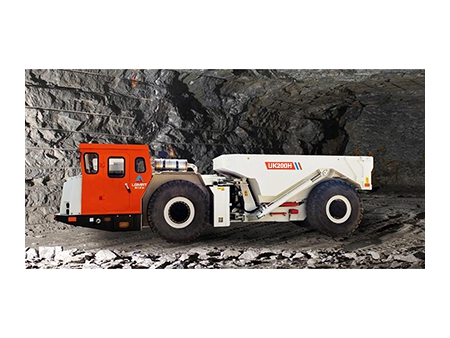

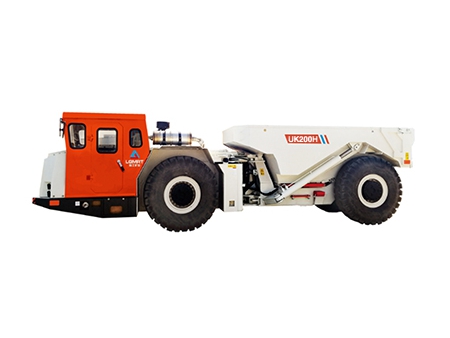

UK200H is an underground mining truck perfect for domestic non-coal mines, with an impressive rated load capacity of 20 tons. The truck is powered by a robust 240kW Mercedes-Benz engine and is based on Sandvik's classic model EJC20 design. In addition to being highly reliable and requiring low maintenance, UK200H stands out for its small size, powerful climbing abilities, and swift running speed - allowing it to operate in tunnels larger than 3.5m by 3.5m. It is suitable for carrying out transportation and construction tasks across metallurgy, metal mines, railways, highways, tunnels, hydraulic culverts, underground mine tunnels, and military culverts.

Features
  • High reliability
    The underground mining truck incorporates Lingong and Sandvik’s technical heritage, ensuring solid and dependable large structural parts like the frame, swing frame, and cargo bucket.
    It utilizes a low-pollution engine from Mercedes Benz, which is water-cooled and known for its superior performance, low emissions, and minimal faults.
    The transmission system is equipped with a DANA gearbox, torque converter, and drive axle, providing a high level of reliability and ensuring the product's durability.
  • High efficiency
    The underground mining truck features an optimized drive-matching design, resulting in a 10% increase in traction force compared to competing products. This enhancement ensures the truck's capability to handle heavy loads and operate efficiently during continuous uphill tasks.
    It incorporates a newly developed swing frame structure with a range of ±7°, allowing all four wheels to maintain contact with the ground even in challenging road conditions. This design significantly improves the truck's overall maneuverability and enhances its ability to navigate various terrains.
  • High safety
    The truck's cab has undergone FOPS&ROPS safety certifications, providing the driver with optimal work safety.
    Its drive axle brake utilizes a POSI-STOP closed wet multi-disc brake system, which offers superior braking performance, ensuring safety and reliability during operation.
Technical Parameters
Model UK200H
Rated load (kg) 20000
Dimensions ( W×H×L) (mm) 8860*2250*2445
Loading height (mm) 2256
Unload height (mm) 5132
Maximum traction force (kN) 299
Bucket (m³) 10
Speed
1st gear (km/h) 5.2
2nd gear (km/h) 9.3
3rd gear (km/h) 16
4th gear (km/h) 26

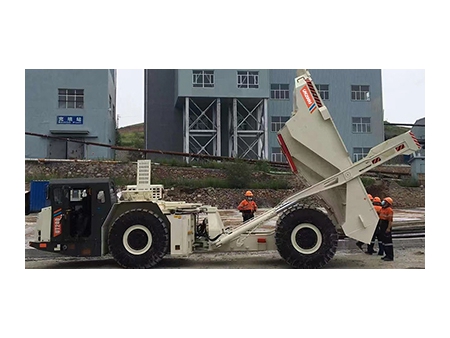

Body Hoist
Raising time (s) 14
Lowering time (s) 12
Weight
Total weight (kg) 22500
Front axle (kg) 16601
Rear axle (kg) 5899
Diesel Engine
Model Benz OM926LA
Power (kW) 240
Number of cylinders 6
Exhaust volume (L) 7.2
Cooling method Water cooling
Air filter Donaldson
Emission standard Euro 3 / Tier 3
Average fuel consumption (L/H) 23.5
Fuel tank volume (L) 325
Torque converter model DANA C5000
Gearbox model DANA R36000
Drive axle DANA19D
Tire 18.00-R25-40PR
Electrical System
Generator 24V, 80A
Battery 24V, 120Ah
Starter motor 24V, 5.5kW
Work light LED 6×35W
Turning Radius
Maximum steering angle (°) ±42
Minimum inner clearance radius (mm) 4460
Minimum outer clearance radius (mm) 7680
