GM3015AH Series Extra-large CNC Cutting Machine

Request a Quote

View All: http://cncmachinescn.com/6-2-extra-large-cnc-cutting-machine.html

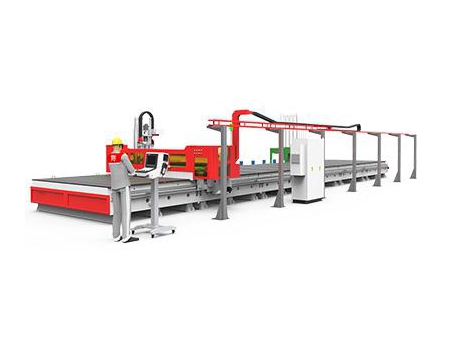

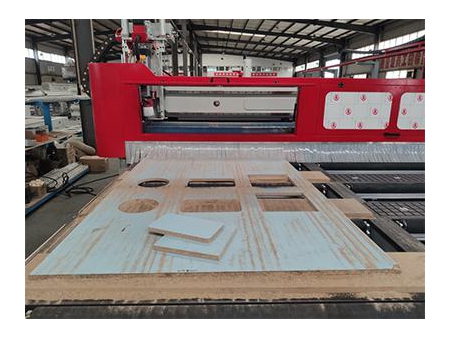

The extra-large CNC cutting machine carries out a number of processes, including cutting, drilling, and milling. It is most often used to produce panels and insulation boards in a variety of shapes for modular vehicles and buildings, including limos, refrigerated trucks, sun rooms, and more.

Materials Cut

Fiberboard, sandwich plate, laminated board, carbon fiber, PVC.

Applications

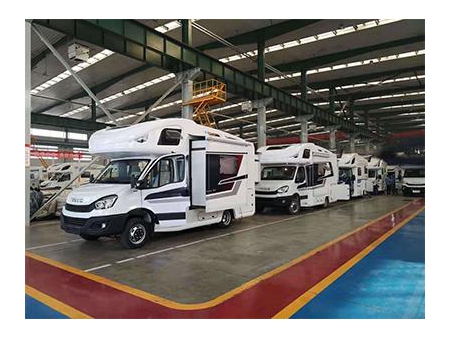

Automobile industry: various recreational vehicles including truck campers, popup campers, travel trailers and more.

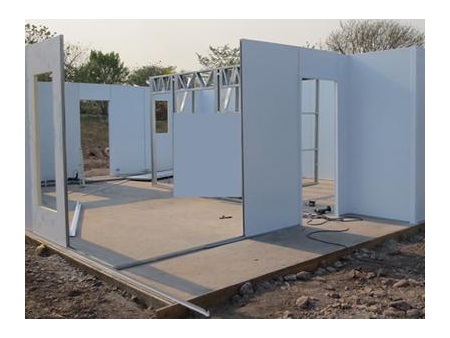

Construction industry: sun rooms, simple rooms, modular buildings.

Features

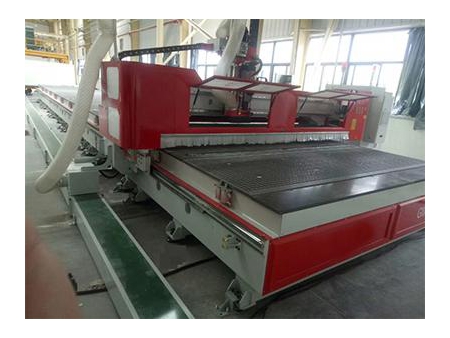

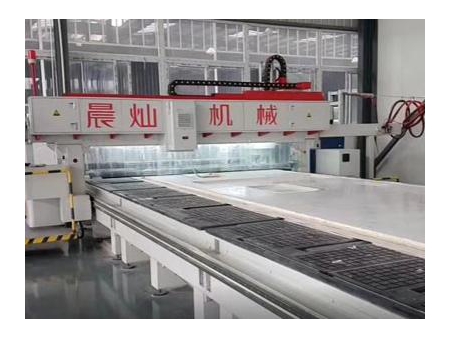

The extra-large CNC cutting machine will automatically load and position workpieces for a highly efficient performance.
It features a heavy-duty frame and movable gantry.
The mechanical spindle power ranges from 9 to 13.5kw. The high power spindle ensures a quick processing.
The 8 position disc-type tool changer features a quick tool changing, labor saving performance, and high efficiency.
It is equipped with YASKAWA servo motor and planetary gear reducer to ensure the processing speed and processing accuracy.
The Taiwan Syntec intelligent control system is easy to use and supports CAD/CAM software. Workers need only minimal training, thus reducing downtime and labor costs.
The vacuum table is manufactured using an aluminum profile and will effectively suck materials in different sizes.
Its X and Y axis uses rack and pinion drive and Z axis uses a screw drive.

Parameters

Series	F1-GM3012AH
Stroke	3000*12000mm
Idle speed	≥60000mm/min
Processing speed	≥30000mm/min
Spindle power	9-13.5KW
Spindle speed	24000r/min
File format	G-code
Dimensions	14 x 4.5 x 2.5 m
Weights	12000 KGS

Options

Larger size saw blade
Dust collection device
Vacuum pump
Dust extraction unit
Pressure roller
Pneumatic roller
Safety light curtain

Gallery
