High Speed Round Braiding Machines (Round Rope) Manufacturer

High Speed Round Braiding Machines (Round Rope)

Request a Quote

View All: http://solution-textile.com/6-2-high-speed-round-cord-braiding-machines.html

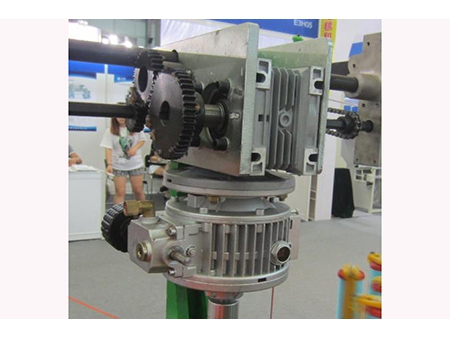

These high speed round braiding machines are compact pieces of equipment suitable for weaving different round cords. The round braiding machines feature double spindles and operate under frequency control that helps to optimize performance.

They are used to produce products like shoelaces, garment strings, elastic tape, pull tape, etc.

/li>

Parameters

Model	Carriers per head	Ribbon number	Horngear size	Motor power	Voltage	Rpm.hornger	carrier type
COBR8-8AB	8	8	110	1HP(0.75KW)	220V-380V	300	AB
COBR12-4A	12	4	90	1HP(0.75KW)	220V-380V	360	A
COBR16-4A	16	4	90	1HP(0.75KW)	220V-380V	360	A
COBR8-8AB-W	8	8	110	1HP(0.75KW)	220V-380V	300	AB
COBR12-4A-W	12	4	90	1HP(0.75KW)	220V-380V	360	A
COBR16-4A-W	16	4	90	1HP(0.75KW)	220V-380V	360	A
COBR16-4AB-L	16	4	80	1HP(0.75KW)	220V-380V	400	AB
COBR16-4A-L	16	4	90	3/4HP(0.75W)	220V-380V	360	A
COBR16-4AB-LW	16	4	80	1HP(0.75KW)	220V-380V	400	AB
COBR16-4A-LW	16	4	90	3/4HP(0.75W)	220V-380V	360	A
COBR16-2B	16	2	130	3/4HP(0.75W)	220V-380V	270	B
COBR24-2B	24	2	130	1HP(0.75KW)	380V	270	B
COBR32-2B	32	2	130	1.5HP(1.1KW)	380V	270	B
COBR16-1C	16	1	160	1HP(0.75KW)	220V-380V	210	C
COBR24-1C	24	1	160	1.5HP(1.1KW)	380V	210	C
COBR32-1C	32	1	160	2HP(1.5KW)	380V	210	C
COBR24-2A	24	2	90	3/4HP(0.75W)	220V-380V	360	A
COBR32-2A	32	2	90	3/4HP(0.75W)	220V-380V	360	A
COBR40-2A	40	2	90	1HP(0.75KW)	380V	360	A
COBR48-2AB	48	2	80	1HP(0.75KW)	380V	400	AB
COBR48-2A	48	2	90	11/2HP(1.1KW)	380V	360	A
COBR24-2A-W	24	2	90	3/4HP(0.75W)	220V-380V	360	A
COBR32-2A-W	32	2	90	3/4HP(0.75W)	220V-380V	360	A
COBR40-2A-W	40	2	90	1HP(0.75KW)	380V	360	A
COBR48-2AB-W	48	2	80	1HP(0.75KW)	380V	400	AB
COBR48-2A-W	48	2	90	11/2HP(1.1KW)	380V	360	A
