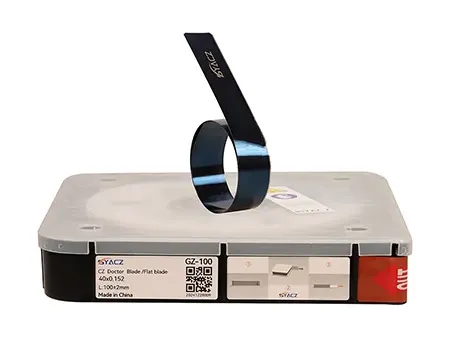

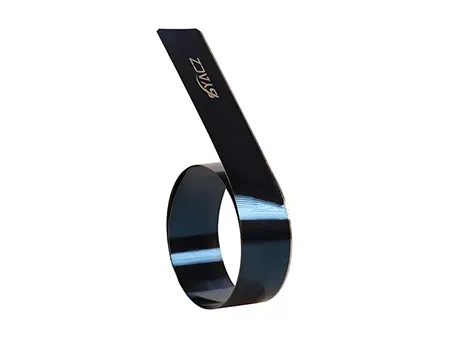

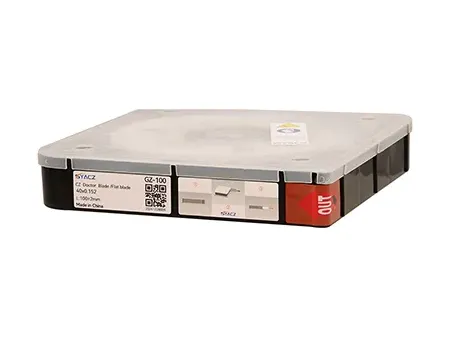

GZ-100 METAL DOCTOR BLADE

Request a Quote

View All: http://doctorblade-en.com/1-4-1-gz-100-2067-carbon-steel.html

Coated Doctor Blades

Blade Edge Shapes

Lamella Blade Edge
Bevel Blade Edge

Specifications

Width range: 10mm-60mm

Width tolerance: ±0.1mm

Thickness range: 0.152mm-0.3mm

Thickness tolerance: ±0.005mm

Hardness: 580-600HV

Tensile strength: 1850-2100Pa

Straightness: ≤0.5mm/3000mm

Coating thickness: 6-10μm

Dimensions

10mm×0.15mm×100m
20mm×0.15mm×100m
20mm×0.2mm×100m
30mm×0.15mm×100m
30mm×0.2mm×100m
35mm×0.15mm×100m
35mm×0.2mm×100m
40mm×0.15mm×100m
40mm×0.2mm×100m
40mm×0.3mm×100m
50mm×0.15mm×100m
50mm×0.2mm×100m
60mm×0.15mm×100m
60mm×0.2mm×100m

The listed specifications are standard sizes. Customized dimensions can be provided upon request to meet specific printing requirements.

Application Processes

Gravure printing, Flexo printing, Roller Coating, Adhesive coating, Lamination

Features

Their high-hardness structure (HV800) combined with a dual-layer ceramic coating enhances resistance to wear and corrosion, ensuring long-term performance.

The reinforced ceramic edge minimizes blade wear, helping to maintain consistent ink transfer and print stability during extended production runs.

Smooth and precise ink distribution reduces tonal shifts, streaks, and fine blade lines, ensuring sharp and uniform print quality.

Excellent performance in gradient printing, barcode and QR code printing, and fine text applications, where detailed ink control is essential.

The high wear resistance helps prevent damage to the edges of the printing plate, contributing to longer plate life and improved production efficiency.

Printing with high-viscosity inks often leads to ink buildup on the blade, affecting print quality and increasing maintenance time. To counter this, these doctor blades are made from 2067 carbon steel and coated with a 6-10μm specialized layer that reduces ink adhesion and blade contamination. The protective coating also offers moderate corrosion resistance while preventing excessive ink accumulation on the back of the blade. This helps minimize streaking and ink smearing, ensuring clean ink transfer and stable print quality, even when working with sticky or slow-drying inks.
