The steel ball making machine automatically and continuously produces steel ball from lengths of steel bar. The complete production line consists of a cold heading machine, polishing machine, grinding machine, and other associated machinery. The diameter of the steel ball can range anywhere in between 2mm to 16mm.

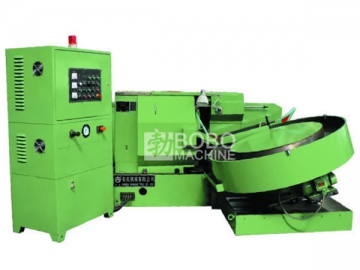

Steel ball cold heading machine

Technical Specifications
Ball billet diameter: 12.0-16.0mm
Capacity: 100-120pcs/min
Motor power: 15kw
Lubrication power: 0.12kw
Dimension: 3500*2200*1400mm
Weight: 8000kg

Steel ball polishing and grinding machine

Technical Specifications
Ball size: 12.7~70mm
Size of lapping plate: 900×400×90mm
Main spindle rotary speed: 5~45 rpm
Max. working pressure: 100KN
Max. loading capacity: 500kg
Main motor power: 7.5kw

As a specialized steel ball making machine manufacturer and supplier in China, BOBO Machine also provides circular shear, filter core making machine, spiral duct machine, thread rolling machine, and much more.
