Corrosion-resistant pipes and fittings for chemical and pharmaceutical applications

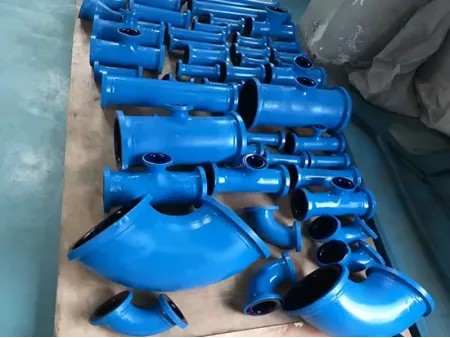

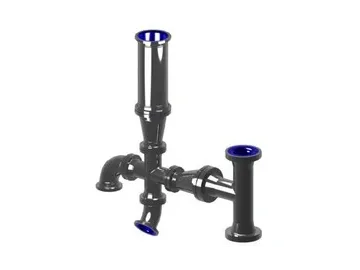

Glass lined pipes and fittings are available in different options, such as straight sections, elbows, tees, crosses, reducers, flanges, and nozzles, each designed for a specific function in a process line. These components are used to connect reactors, vessels, and other process equipment, ensuring reliable flow of liquids and gases while maintaining product purity and process safety.

Glass Lined Nozzle

Size	d mm	dl mm	D mm2	T mm	H mm	n- ømm
25	26.5	33.7	61	12	26	4- ø14
32	34.4	42.4	72	12	28	4- ø18
40	41.1	48.3	80	12	28	4- ø18
50	52.3	60.3	102	14	32	4- ø18
65	67.1	76.1	120	14	32	4- ø18
80	77.7	88.9	130	16	38	8- ø18
100	101.7	114.3	158	16	38	8- ø18
125	126.7	139.7	188	16	40	8- ø18
150	154.1	168.3	212	16	46	8- ø22
200	203.1	219.1	268	20	48	8- ø22
250	253	273	320	22	54	12- ø22
300	304.8	323.9	370	24	58	12- ø22

Glass Lined Straight Pipe

Size	X mm	Size	X mm	Size	X mm
25	2000	65	2000	150	3000
32	2000	80	3000	200	3000
40	2500	100	3000	250	3000
50	3000	125	3000	300	3000

Glass Lined Elbow

Size	X mm	Size	X mm	Size	X mm
25	90	65	120	150	195
32	100	80	135	200	260
40	105	100	155	250	315
50	115	125	175	300	360

Glass Lined Elbow - 90°

Size	X mm	Size	X mm	Size	X mm
25	90	65	120	150	195
32	100	80	135	200	260
40	105	100	155	250	315
50	115	125	175	300	360

Glass Lined Elbow - 45°

Size	X mm	Size	X mm	Size	X mm
25	60	65	85	150	150
32	65	80	95	200	180
40	70	100	105	250	220
50	80	125	125	300	250

Glass Lined Equal Tee and Cross

Size	X mm	Size	X mm	Size	X mm
25	90	65	120	150	195
32	100	80	135	200	260
40	105	100	155	250	315
50	115	125	175	300	360

Glass Lined Reducing Tee and Cross

Dl mm	D2 mm	25	32	40	50	65	80	100	125	150	200	250
50	X mm	l 115	115	115
	Y mm	l 100	105	110
65		120	120	120	120
		105	110	115	120
80		135	135	135	135	135
		115	120	125	130	135
100		155	155	155	155	155	155
		125	130	135	140	145	150
125		175	175	175	175	175	175	175
		140	145	150	155	160	165	170
150		195	195	195	195	195	195	195	195
		155	160	165	170	175	180	185	190
200		260	260	260	260	260	260	260	260	260
		185	190	195	200	205	210	215	220	225
250		315	315	315	315	315	315	315	315	315	315
		230	235	240	245	250	255	260	265	270	275
300		360	360	360	360	360	360	360	360	360	360	360
		235	240	245	250	255	260	265	270	275	280	300

Glass Lined Reducer

Dl mm	D2 mm	25	32	40	50	65	80	100	125	150	200	250
50	X mm	140	140	140
65		150	150	150	150
80		160	160	160	160	160
100		175	175	175	175	175	175
125				200	200	200	200	200
150					225	225	225	225	225
200					250	250	250	250	250	250
250							300	300	300	300	300
300								325	325	325	325	325

Glass Lined Reducing Flange

Dl mm	D2 mm	25	32	40	50	65	80	100	125	150	200	250
40	E mm	n 35	35
50		35	35	35
65		35	35	35	35
80		35	35	35	35	35
100		45	45	45	45	45	45
125		45	45	45	45	45	45	45
150		45	45	45	45	45	45	45	45
200		45	45	45	45	45	45	45	45	45
250		45	45	45	45	45	45	45	45	45	45
300		45	45	45	45	45	45	45	45	45	45	45

Glass Lined Regulating Ring

D mm	25	32	40	50	65	80	100	125	150	200	250	300
C mm	68	72	88	102	120	138	158	188	212	268	320	370
E mm	kg Weight
15	1.5	1.6	1.7	1.8	2	2.2	2.1	2.1	2.1	2.4	2.4	2.4
20	2	2.1	2.3	2.4	2.7	3	2.7	2.8	2.9	3.2	3.2	3.2
25	2.5	2.7	2.9	3.1	3.4	3.7	3.4	3.5	3.6	4	4.1	4
30	3.1	3.3	3.5	3.7	4	4.4	4.1	4.2	4.3	4.8	4.9	6.4
40	4.1	4.1	4.1	4.6	5.2	5.9	5.5	5.6	5.7	6.4	6.5	6.4
50						6.1	6.9	7	7.2	8.1	8.1	8

Glass Lined Blind Flange

Size	X mm	Size	X mm	Size	X mm
25	90	65	120	150	195
32	100	80	135	200	260
40	105	100	155	250	315
50	115	125	175	300	360
