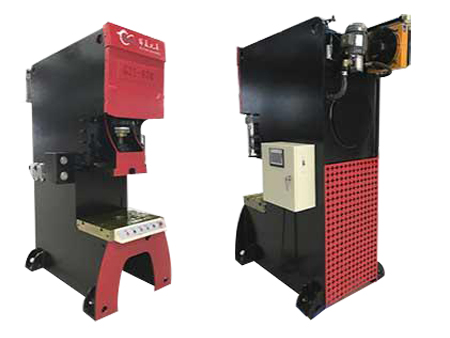

High Precision Metal Punch Press Machine
Request a Quote
The high precision metal punch press machine uses a double hand operation with emergency stop and up/down point functions. Users can choose automatic, semi-automatic and click functions to make work more convenient.
- J96CY-15T
- J96CY-25T
- J96CY-40T
- J96CY-63T
- J96CY-80T
- J96CY-100T
- J96CY-1255T
This product has been discontinued and removed from our shelves.
Features
- Our machine features a C-type design and integral welding ensure the excellent rigidity and small deformation of machine structure.
- The machine control system uses Siemens PLC and display screen to ensure the accuracy of the machine.
- The slider to the lowest position is accurately located while the machine is running, and the error is ±0.01. The position is also freely adjustable.
- We use a full oil pressure system to achieve a high pressure, stable working performance and large pressure adjust range.
- Hydraulic valve seals according to customer needs can be chosen, including Huade, Japan NOK or Taiwan DingZing.
- The downward movement stroke has two speed options: fast advance and automatic working, both of which improves the working efficiency, adjusts the working speed at will, protects the mold and improves the product pressing quality.
- Two cycle start mode: button and pedal.
- This machine can select an infrared protection device or oil temperature cooling device based on customer requirements. The bottom dead center can be adjusted with an encoder or faster ruler detection.
Parameters
Model | J96CY-15T | J96CY-25T | J96CY-40T | J96CY-63T | J96CY-80T | J96CY-100T | J96CY-1255T | |
Nominal force KN | 150 | 250 | 400 | 630 | 800 | 1000 | 1250 | |
Hydraulic maximum working pressure Mpa | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
Slider maximum stroke mm | 70 | 80 | 100 | 120 | 130 | 140 | 140 | |
Maximum shut heightmm | 240 | 260 | 320 | 390 | 420 | 460 | 460 | |
Mold height adjustment mm | 45 | 70 | 80 | 80 | 100 | 100 | 100 | |
Throat depth mm | 175 | 210 | 235 | 260 | 310 | 310 | 350 | |
Table height from ground mm | 700 | 740 | 740 | 750 | 760 | 800 | 870 | |
Fast down speed mm/s | 80 | 225 | 265 | 220 | 220 | 210 | 210 | |
Working speed mm/s | 30 | 14 | 14 | 16 | 15 | 14 | 14 | |
Return speed mm/s | 120 | 99 | 118 | 195 | 180 | 165 | 165 | |
Sliding block ground dimensions | Width mm | 200 | 250 | 320 | 440 | 500 | 500 | 600 |
Length mm | 180 | 220 | 270 | 320 | 400 | 400 | 500 | |
Die hole mm | Φ40 | Φ40 | Φ50 | Φ50 | Φ60 | Φ60 | Φ60 | |
Bed size | Width mm | 480 | 600 | 630 | 710 | 850 | 850 | 1000 |
Length mm | 320 | 400 | 450 | 500 | 600 | 600 | 65 | |
Bore diameter mm | Φ100 | Φ100 | Φ150 | Φ150 | Φ180 | Φ180 | Φ200 | |
Dimensions | Width mm | 800 | 1160 | 1100 | 1250 | 1370 | 1350 | 1600 |
Length mm | 900 | 1155 | 1260 | 1450 | 1630 | 1630 | 1850 | |
Height mm | 1700 | 1900 | 1980 | 2270 | 2500 | 2500 | 3400 | |
Motor power kw | 5.5 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | |
Weight kg | 1000 | 1400 | 2000 | 3500 | 5800 | 5800 | 8000 | |
