Automatic Sheet Metal Bending

RBC Series

Automatic Sheet Metal Bending

RBC Series

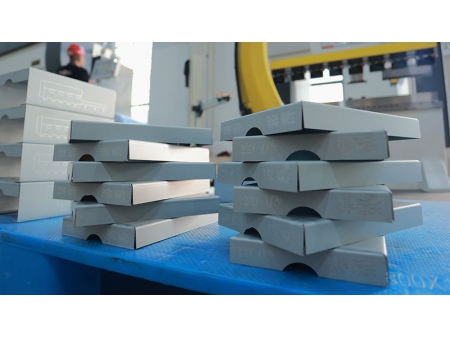

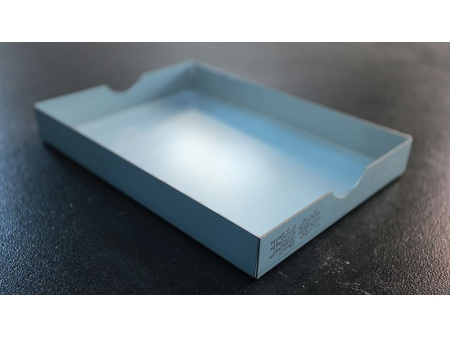

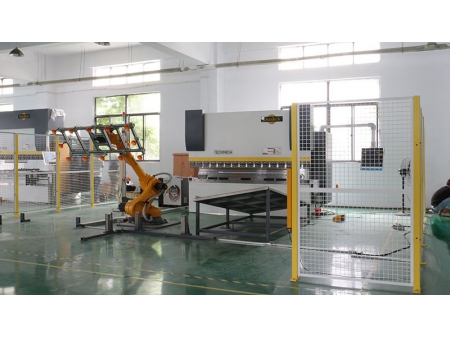

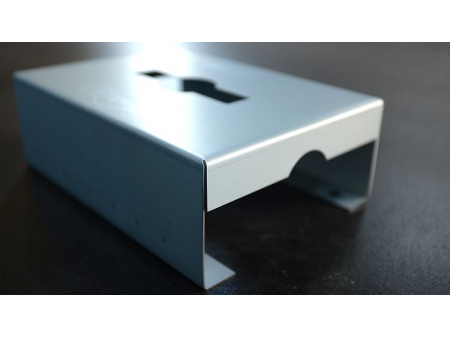

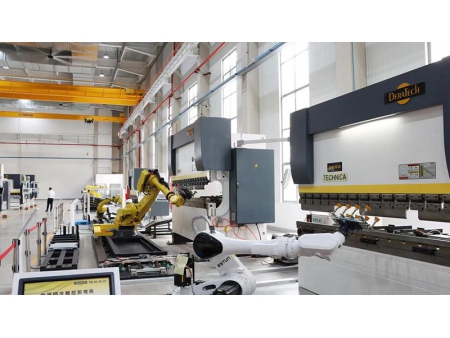

Stationary robot bending cell integrates multi-joint industrial robots with CNC bending machines to achieve automatic gripping, centering, bending, and stacking of sheet metal, thereby enabling automated bending. Depending on the weight, size, and bending requirements of the workpiece, suitable models of bending machines and robots can be chosen. Additionally, customized auxiliary devices can be designed to fulfill specific requirements.

Parameters
Model Max. sheet weight (kg) Max. sheet size (mm) (L×W) Robot model Brand Robot payload (kg) Robot reach (mm) Moving rail
RBC-25F 10 800×600 M-20iD/25 FANUC 25 1831 No
RBC-70F 30 2000×1000 M-710iC/70 FANUC 70 2050 No
RBC-80F 40 2500×1250 ER80-2565-BD ESTUN 80 2565 No
RBC-130F 65 3000×1500 ER130-2865-BD FANUC 130 2865 No
