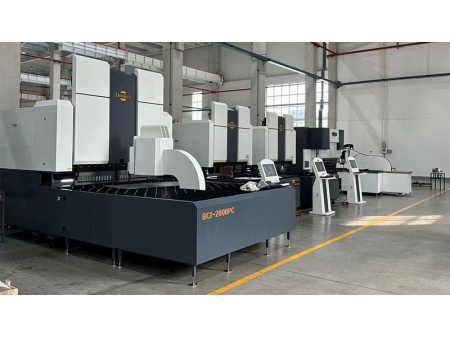

Bending Center with Pressure Arm
Request a Quote
Sheet Metal Bending Machine
BCI Series
Sheet Metal Bending Machine
BCI Series
BCI series bending center with pressure arm comes with advanced human-machine engineering design, industry-leading control technology, energy-saving and environmentally friendly, stable and efficient performance, and a wide processing range.
Applications
- Electronic components manufacturing
- Electrical metal enclosures fabrication
- Sheet metal fabrication
Parameters
Model | |||||||
Max. bending size(L*W) (mm) | 1400×1400 | 2000×1500 | 2500×1500 | 1400×1400 | 2000×1500 | 2500×1500 | |
Min. double side forming size (mm) | 140 | 140 | 140 | 140 | 140 | 140 | |
Min. four side forming size (mm) | 140×190 | 140×190 | 140×190 | 140×190 | 140×190 | 140×190 | |
Max. bending height (mm) | 170 | 170 | 170 | 170 | 170 | 170 | |
Max. panel thickness (mm) | Carbon steel panel (UTS 410 N/mm2) | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 |
304 stainless steel panel (UTS 515 N/mm2) | 1.2 | 1.2 | 1.2 | 2 | 2 | 2 | |
201 stainless steel panel (UTS 520 N/mm2) | 1 | 1 | 1 | 1.7 | 1.7 | 1.7 | |
Aluminum panel (UTS 265 N/mm2) | 2 | 2 | 2 | 3 | 3 | 3 | |
Min. panel thickness (mm) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | |
Peak power (kW) | 35 | 39 | 58 | 40 | 72 | 72 | |
Average power (kW) | 1.8 | 2.5 | 2.9 | 1.8 | 2.6 | 2.6 | |
Bending angle (°) | ±150 | ±150 | ±150 | ±150 | ±150 | ±150 | |
Servo axis | 15 | 15 | 15 | 15 | 15 | 15 | |
Dimensions(L*W*H) (mm) | 4400×1910×2900 | 5150×2700×3350 | 5750×3150×3410 | 4400×1910×2900 | 5150×2700×3350 | 5750×3150×3400 | |
Machine weight (ton) | 12 | 16 | 22 | 13 | 16 | 22 |
Details
- Omni-directional workpiece positioning system
The machine adopts Y-axis dual-lift five-point automatic clamping and positioning for material feeding.
- Power hinge knife (optional)
Effectively prevent interference and scratching on the surface of workpiece.
