Automatic Sheet Metal Bending

RBC Series

Automatic Sheet Metal Bending

RBC Series

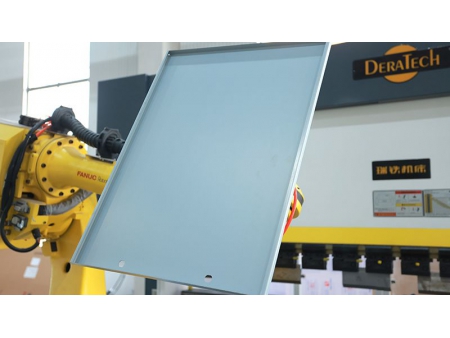

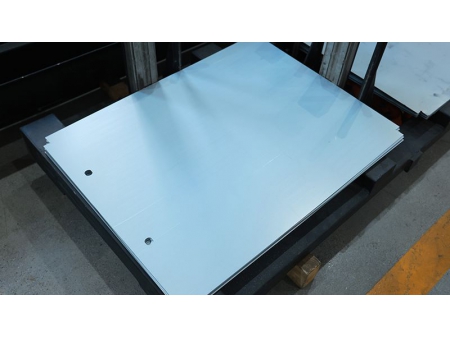

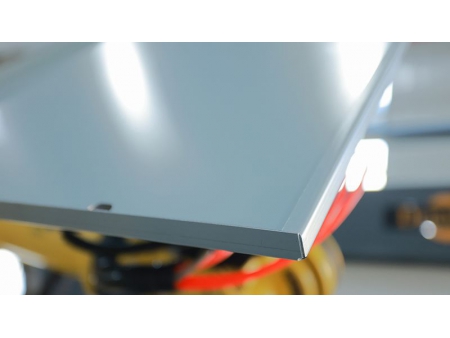

Mobile robot bending cell seamlessly integrates CNC bending machines and robots using a PLC motion control system, enabling the automatic gripping, centering, bending, and stacking of sheet metal. This advanced system significantly reduces manual labor intensity while effectively improving production efficiency, resulting in substantial cost savings. Customized bending unit solutions are available based on the specific bending requirements of customer workpieces, ensuring maximum customer satisfaction.

Parameters
Model Max. sheet weight (kg) Max. sheet size (mm) (L×W) Robot model Brand Robot payload (kg) Robot reach (mm) Moving rail length (m)
RBC-12M 5 500×500 M-10iD/12 FANUC 12 1441 2
RBC-25M 10 1000×800 M-20iD/25 FANUC 25 1831 4
RBC-80M 40 2500×1250 ER80-2565-BD ESTUN 80 2565 6
RBC-165M 80 3000×1500 R-2000iC/165F FANUC 165 2655 6
RBC-210M 110 3000×1500 R-2000iC/210F FANUC 210 2655 6
RBC-270M 130 3500×1500 R-2000iC/270F FANUC 270 2655 6
