The 605G egg accumulator is a kind of 6 row egg accumulator which works with high efficiency. You can transfer 30 eggs onto the 605G accumulator at a time via the . Then the accumulator will direct 6 lines of eggs into 1 line and transfer the eggs onto single conveyor egg washer nicely with no cracking.

Specifications
Model ZYS-G60/150
Product code 605G
Power* 290W, 50HZ
Voltage* 220-240V, single phase Or 380-415V 3-phase

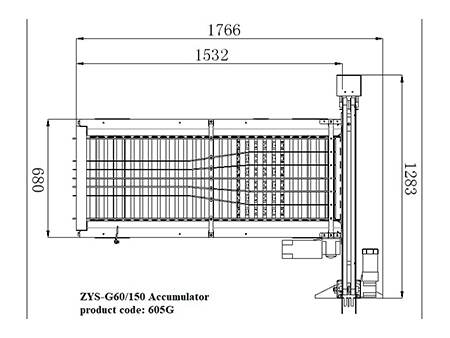

Dimension(L* W* H) 1.77*1.25*1.3 M
Net weight* 120 kg
Gross weight* 200 kg
Function Roller conveyor & orientator and optional vacuum egg lifter

* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Roller conveyor
  • Orientator
  • Control panel of accumulator
    Roller conveyor

    Loading 30 eggs at a time on the 6-row rollers of conveyor via the Zenyer 602 vacuum egg lifter.

    Orientator

    The orientator will direct 6 lines of eggs into 1 line and transport them to the single conveyor of egg washer/grader.

    Control panel of accumulator

    There are 2 control panels on the accumulator, one manages the speed of the roller conveyor and the other manages the speed of the orientator. The up arrow increases the speed while the down arrow decreases the speed. This function helps adjust the accumulator and orientator to match the speed of any other machines it is working with.
