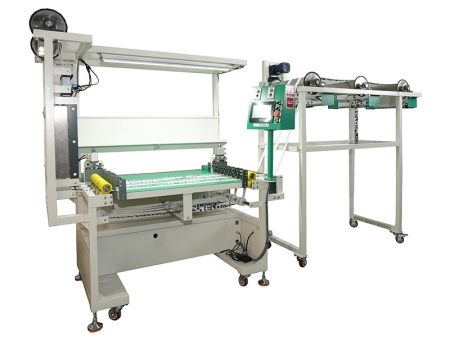

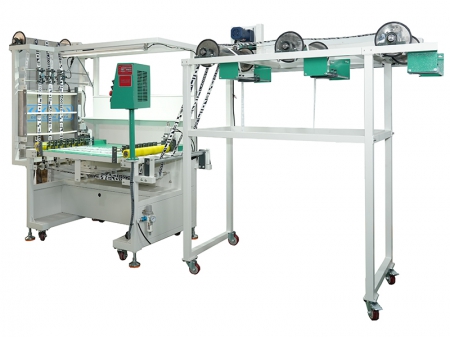

Semi-Automatic Webbing Inspection Machine
Request a Quote
This inspection machine is a semi-automatic device designed for inspecting webbing quality and printed patterns. Compared with manual inspection, it can increase inspection efficiency by more than fivefold.
Features
- The frame is made of high-quality steel with a painted surface.
- Equipped with a gantry-type metal detection system that automatically alarms and stops when metal contaminants are detected.
- Equipped with an anti-static device to prevent dust adhesion and ensure product quality.
- Allows simultaneous inspection of front and back sides of the webbing.
- Worktable features a matte surface with standard lighting to prevent glare.
- Servo motor drive system allows flexible setting of inspection length and speed.
- Equipped with a touchscreen and PLC control system with a foot switch for convenient operation.
Parameters
| Power supply | 220V / 50Hz |
| Power | 0.9 kW |
| Air pressure | 0.3–0.7 MPa |
| Frame dimensions (L×W×H) | 1950 × 775 × 1660 mm |
| Output rack dimensions (L×W×H) | 2266 × 891 × 1808 mm |
