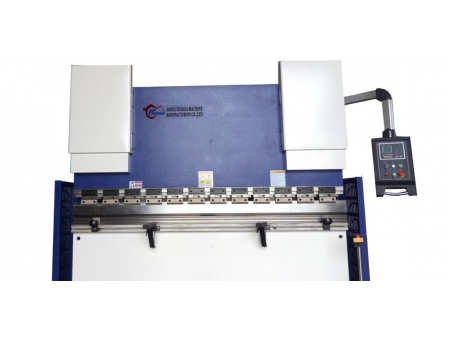

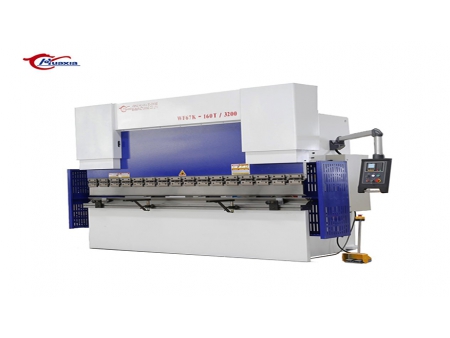

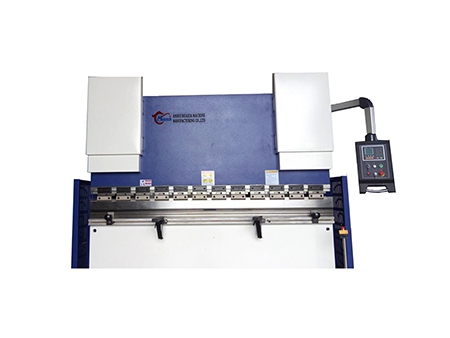

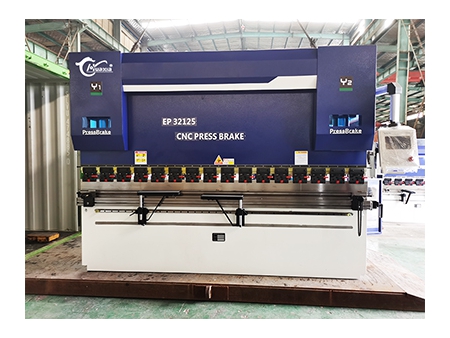

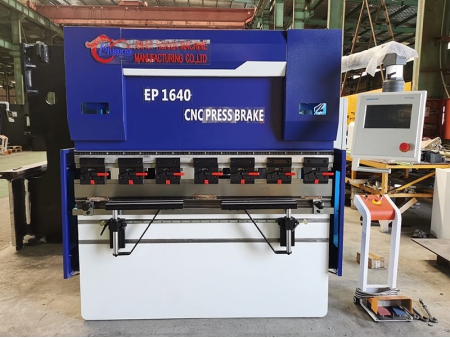

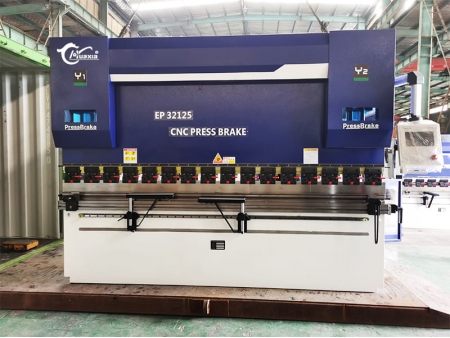

The WF67K(Y) Hydraulic Bending Press Brake features a NC system, which can satisfy the demands needed for complex workpiece processing, delivering high precision.

  • 63T/2500
  • 100T/3200
  • 160T/3200
  • 200T/4000
Features
  • The welding structure of the steel sheet that is treated through vibration aging, the internal stress is eliminated with a high strength and rigid design.

  • Hydraulic double oil cylinders drive the machine for smooth running and high operating efficiency..

  • The position of the back gauge and the slider stroke control is achieved by servo motor transmission, and info is displayed on the numerical control screen.

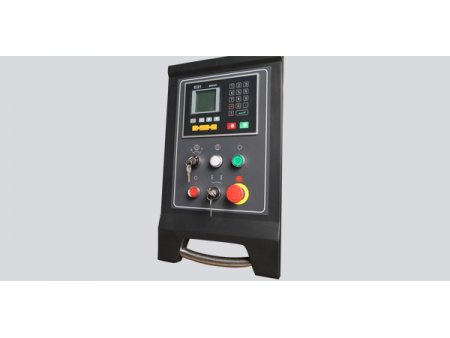

  • The NC system can be chosen from DELEM, ESYUN and Tetra, etc.

Parameters
Workbench Width(mm) Poles distance(mm) Throat depth(mm) Slipper Stroke(mm) Max Opening Height(mm) slipper stroke adjust Length(mm) Oil Cylinder dia (mm) Main motor power(kw) Dimension(L×W×H) (mm)
160 1900 250 120 345 100 Ф140 5.5 2600×1500×2200
160 2600 250 120 345 100 Ф140 5.5 3300×1500×2200
180 1900 250 120 350 100 Ф160 5.5 2600×1700×2320
180 2600 250 120 350 100 Ф160 5.5 3300×1700×2320
180 2600 320 120 380 100 Ф180 7.5 3380×1750×2420
180 3100 320 120 380 100 Ф180 7.5 4000×1750×2420
180 2600 320 120 380 100 Ф200 7.5 3200×1750×2520
180 3100 320 120 380 100 Ф200 7.5 4000×1750×2520
200 2550 320 200 450 150 Ф220 11 3300×1850×2700
200 3040 320 200 450 150 Ф220 11 4100×1850×2700
220 2540 350 250 500 180 Ф240 11 3300×2150×2950
220 3100 350 250 500 180 Ф240 11 4100×2150×2950
240 2500 350 250 520 200 Ф280 18.5 3200×2200×3300
240 3030 350 250 520 200 Ф280 18.5 4000×2200×3300
Details

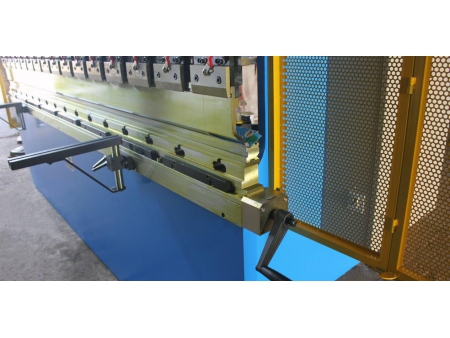

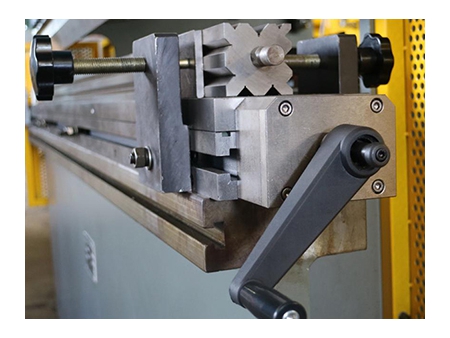

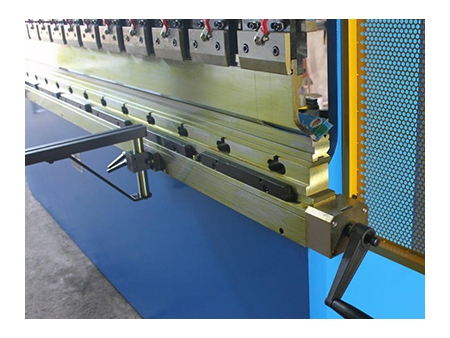

  • Villa mechanical compensation deflected workbench

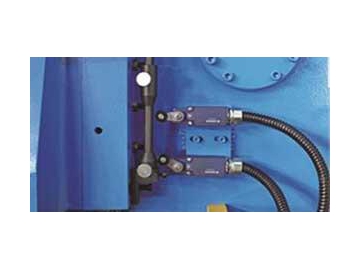

  • Limit switch

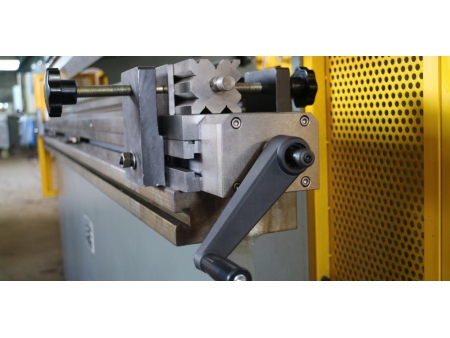

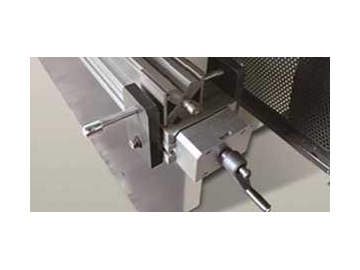

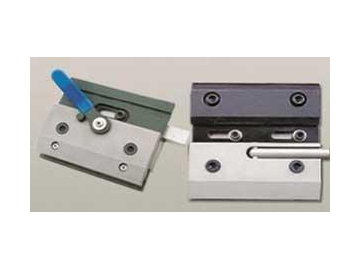

  • Mold quick clamping device

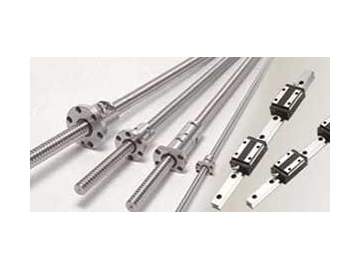

  • Precision ball screw Linear guide

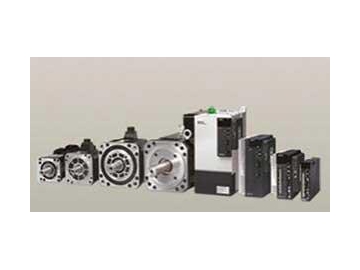

  • Servo motor

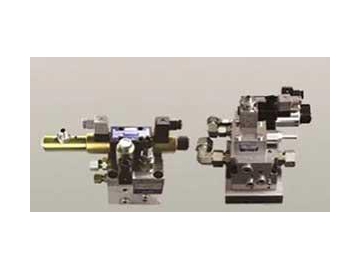

  • Hydraulic system

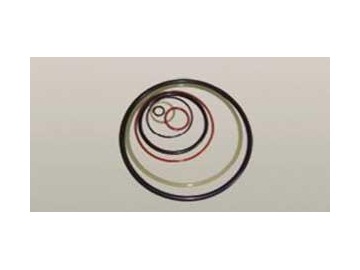

  • High-quality seals
