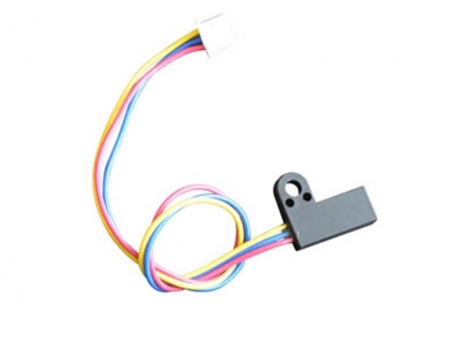

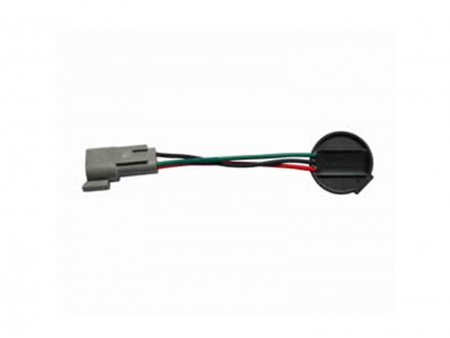

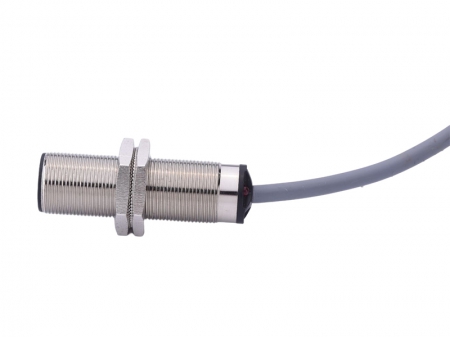

HPS Series Hall-Effect Proximity Switch
HPS series proximity switch is a Hall-effect proximity switch, and there are two models of sinking and sourcing. There is a three-wire, solid state device recommended for low current DC loads such as interfacing with a programmable controller. It provides compact, reliable sensing for virtually infinite life. A LED indicator light illuminates when switching occurs. Models are available in current sinking (NPN) and current sourcing (PNP) models, either can be used for loads such as counters and solid state relays. Selection of sinking or sourcing models depends on the requirements of the programmable controller.
- Solid state reliability, no moving parts means longer life, no contact bounce
- Easy to mount on Yuanben actuators
- Able to mount several switches on one actuator
- LED indicator for ease of positioning and troubleshooting
- Reverse polarity and over-voltage protection
- Available with pigtail leads (in 2 lengths) or quick connect (with two cable length options)
The HPS series proximity sensors are widely used in many fields, such as machine, metallurgy, chemical industry, light textile, printing, document shredder etc.
| Model | HPS-1-5-3N-M1650-500 |
| Housing Code | M1650 |
| Power Voltage | 5 to 24VDC |
| Output Current | 20mA |
| Output Voltage | ≤400mV |
| Working Air-gap | 5mm |
| Position Accuracy | 0.02mm |
| Frequency | 50 to 100 KHz |
| Contact Mode | Normally open |
| Anti-polar Protection | Yes |
| Output Mode | NPN, PNP |
| Actuator Code | Selectable |
| Cable and Length | UL2464AWG26, 500mm |
| Working Temperature | 10 to 125℃ |
| Material of Housing | H62 or H59 |
| Protection Class | IP65 |
| Position Indictor | LED |
