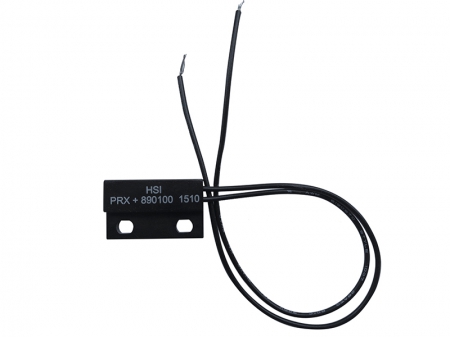

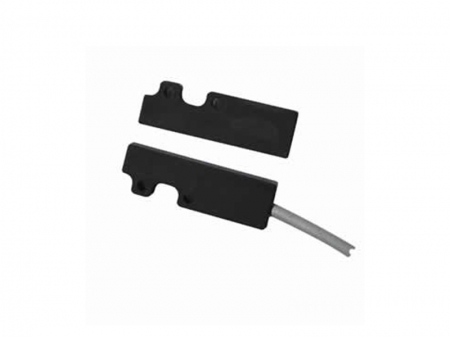

MPS Series Magnetic Proximity Switch
The magnetic proximity switches perform the same function as conventional limit switches. They can be used as position indicators, cycle counters, or to confirm operation. They may also be used as safety devices by allowing for operation of secondary devices only when the actuator is properly positioned.
Yuanben actuators and switches provide a reliable and cost-effective interface between the pneumatically-powered functions of applications and the electrical control, they eliminate costly, time-consuming design and fabrication of independent electrical limit switch arrangements, and provide an aesthetically pleasing installation.
In addition, the photoelectric switch can be custom produced and provided with OEM service.
- Wear resistant
- Maintenance free
- Direct input to PLC
- Resistant to corrosive agents
- High switching rate
- High cost-performance ratio
- High reliability
- LED function display
- Completely enclosed
- Not sensitive to vibration
- Waterproof to IP67
- DC units are short circuit protected
- Wide selection for many applications
The MPS series proximity sensors are widely used in many fields, such as machine, metallurgy, chemical industry, light textile, printing industry, etc. They are very suitable for integrating in PC systems and various kinds of industrial control equipment, and are optimal switches for position control, speed measurement, counting, direction detection and automatic protection, etc. Such as to detect the doors and windows status.
| Model | | | |
| Working Voltage | 220VAC/200VDC | 220VAC/200VDC | 220VAC/200VDC |
| Operating Air-gap | 15mm(min) | 12mm(min) | 20 to 22mm |
| Material of Housing | Brass H62/Plastic PBT | Brass H62/Plastic PBT | Brass H62/Plastic PBT |
| Ambient Temperature | -40 to 105℃ | -40 to 105℃ | 40 to 105℃ |
| Insulation Resistance | 50MQ | 50MQ | 50MQ |
| Protection Class | IP55 | IP55 | P55 |
| Carry Current | 1.0 A (max) | 0.5A(max) | 1.5A(max) |
| Switching Current | 0.50A(max) | 0.10A(max) | 0.70A(max) |
| Contact Rating | 20W | 20W | 50W |
| Contact Resistance | 150mΩ(max) | 150mQ(max) | 150mΩ(max) |
| Operating Mode | Vertical or Parallel Axis | Vertical or Parallel Axis | Vertical or Parallel Axis |
| Vibration | 20 to 2000Hz | 20 to 2000Hz | 20 to 2000Hz |
| Cable and Length | UL1430, AWG22, 500mm | UL2464, AWG24, 500mm | UL1430, AWG22, 500mm |
| Durable | 100K cycles | 100K cycles | 100K cycles |
