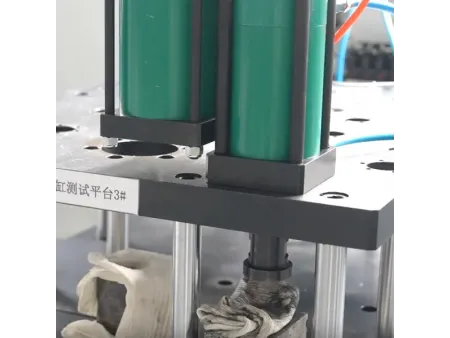

Pneumohydraulic Intensifier, MPS/HMPS Series

Request a Quote

Website: http://clinchingmachine-en.com/pneumohydraulic-intensifier-1-5.html

Pressing force 2-2000kN
Force stroke 6-52mm
Total stroke 100/200mm

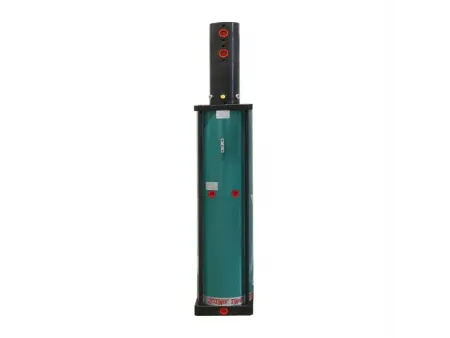

The MPS/HMPS pneumohydraulic intensifier is a high-pressure output device that integrates pneumatic and hydraulic technologies. By utilizing compressed air to drive piston motion and applying Pascal’s Law, it converts input air pressure into hydraulic pressure dozens of times higher. Its core components include the cylinder, oil cylinder, and air-oil conversion barrel, supporting 360-degree mounting without the need for an additional hydraulic unit.

Leave a Message

MPS Intensifier
Pressure Ratio: 69:1
Converts 6 bar input air pressure into 400 bar hydraulic output.
Specifically designed to drive AT Series working cylinders.

HMPS intensifier
Pressure Ratio: 39:1
Converts 6 bar input air pressure into 230 bar (up to 250 bar) hydraulic output.
Specifically designed to drive HZ Series working cylinders.

Operating Parameters

MPS Operating Parameters

Model	Approach Stroke Force (kg, at 6 bar air pressure)	Return Stroke Force (kg, at 6 bar air pressure)	High-pressure output at A1 under intensification (CC)	A1	H	B	L1	L	Pneumatic interface	Hydraulic interface
MPS100.60.30	400	470	30	112	85	625	281	681	G1/2	G3/4
MPS125.60.50	400	790	50	137	98.5	612	256	668	G1/2	G3/4
MPS160.60.100	400	1800	100	177	118.5	720	298	776	G3/4	G3/4
MPS200.60.180	400	2800	180	216	138	836	386	892	G1	G3/4
MPS250.60.265	400	6600	265	268	159	921	361	977	G1	G1
MPS300.60.390	400	10000	390	332	196	1125	450	1200	G1	G1-1/4

HMPS Operating Parameters

Model	Approach Stroke Force (kg, at 10 bar air pressure)	Return Stroke Force (kg, at 6 bar air pressure)	High-pressure output under intensification (CC)	A1	H	B	L1	L	Pneumatic interface	Hydraulic interface	Remarks
HMPS100.100.50	400	470	50	112	85	625	281	681	G1/2	G3/4	230
HMPS125.100.78	400	790	78	137	98.5	612	256	668	G1/2	G3/4	230
HMPS160.100.134	400	1800	134	177	118.5	720	298	776	G3/4	G3/4	230
HMPS200.100.284	400	2800	284	216	138	836	386	892	G1	G3/4	230
HMPS250.100.395	400	6600	395	268	159	921	361	977	G1	G1	230
HMPS300.100.650	400	10000	650	332	196	1125	450	1200	G1	G1-1/4	230

High-pressure hydraulic port
Pressure test port
Fast advance port
Boost return port
Boost port

In repetitive assembly tasks, how does consistent force support quality stability?

Each cycle outputs the same pressure, reducing batch-to-batch differences and ensuring consistent quality.

In high-mix, low-volume production environments, how quickly can process parameters be adjusted?

Pressure and stroke adjustments are intuitive, requiring no complex setup when switching products, making the system ideal for flexible production needs.
