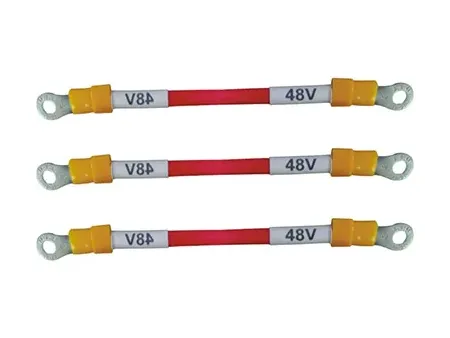

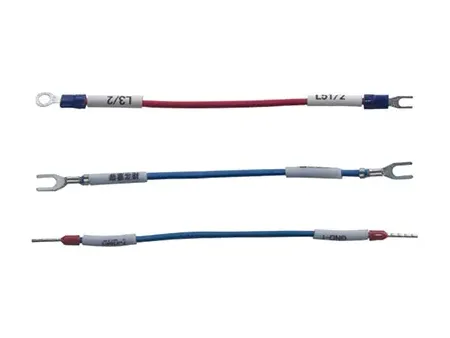

Designed to meet the needs of industries requiring precise and durable wire harnesses, this cable terminating machine combines cold-pressed terminal crimping with marking functionality. It supports operations such as two-sided crimping, single-sided crimping, half stripping, and inserting identification sleeves with laser-engraved markings. Ideal for automotive, rail transit, and distribution cabinet applications, it processes wires with precision and consistency while allowing custom text or patterns to be saved for future use.

Crimping Capacity
  • Approx. 800 to 1,200 wires per hour at 100mm length
Technical Data
General Model
Dimensions (L×W×H) 1300×770×1550mm
Weight Approx. 400kg
Power Supply AC220V 50Hz
Rated Current 15A
Power 4kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Space Requirement 1×1.5m
Crimping Force 2T
Functions Crimping Capacity 800-1200 wires/hr at 100mm length (depending on the wire length)
Wire Processing Wire cutting, One-sided stripping, Two-sided stripping, One-sided cold-pressed terminal crimping, Two-sided cold-pressed terminal crimping, One-sided cold-pressed terminal crimping one-sided stripping, Two-sided cold-pressed terminal crimping two marking tubes insertion, Two-sided cold-pressed terminal crimping one marking tube insertion, One-sided cold-pressed terminal crimping one marking tube insertion
Control System LCD display, single-chip microcontroller
Detection Devices Crimp test, wire shortage detection, air pressure test, paper winding inspection
Auxiliary Equipment Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Operation Control Wire feeding, cutting, stripping and movement are controlled via touch screen, with servo control
Pressure Measuring Device Used to measure terminal crimping pressure (optional based on customer's request)
Application Range Cutting Length 68-999mm (two-sided insertion), 48-999mm (one-sided insertion)
Stripping Length Front: 0.1mm-12mm, Rear: 0.1mm-12mm
Wire & Cable Type Electric wire, high temperature cable, halogen-free cable, Teflon insulated cable (AWG14#-AWG24#)
Features
  • The servo motor ensures precise positioning, high processing speeds, and consistent accuracy, making it suitable for cold-pressed terminal crimping and marking tasks.

  • The UV laser engraving system allows for customizable text and patterns on identification sleeves, which can be saved and recalled easily for future production requirements.

  • Advanced wire feeding with encoder-based compensation ensures accurate stripping and feeding, providing reliable performance across varying wire lengths.

  • The built-in fault detection system displays real-time alerts on a user-friendly touch screen, simplifying troubleshooting and reducing downtime during production.
