Automatic Two-Sided Terminal Crimping and Heat Shrink Tube Marking Machine

Automatic Two-Sided Terminal Crimping and Heat Shrink Tube Marking Machine
Automatic Two-Sided Terminal Crimping and Heat Shrink Tube Marking Machine
Request a Quote

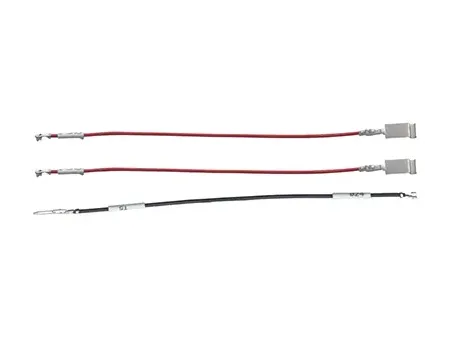

This wire terminating equipment is engineered for efficient processing of long wires over 270mm, integrating tasks such as cutting, stripping, crimping, and heat shrink tube marking into one seamless workflow. Designed for dual-end operations, this cut, strip and terminate machine supports applications such as heat shrink tube insertion, terminal crimping, and twisting. With synchronized operations, it provides consistent results while enhancing production speed and flexibility.

Crimping Capacity
  • Approx. 2,000 to 2,700 wires per hour
Technical Data
General Model
Dimensions (L×W×H) 2120×770×1600mm
Weight 750kg
Power Supply AC220V 50Hz
Rated Current 20A
Power 6.5kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Space Requirement 1×2.2m
Crimping Force 2T
Functions Crimping Capacity 2000-2700 wires/hr (depending on the wire length)
Wire Processing Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping one-sided heat shrink tube insertion, One-sided crimping and heat shrink tube insertion one-sided stripping, Two-sided crimping two-sided heat shrink tube insertion
Control System LCD display, single-chip microcontroller
Die Change OTP crimping applicator, easy and quick die changing
Detection Devices Crimp test, wire shortage detection, air pressure test, paper winding inspection
Auxiliary Equipment Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Operation Control Wire feeding, cutting, stripping and movement are controlled via touch screen
Optional Pressure Measuring Device Used to measure terminal crimping pressure
Application Range Cutting Length 270-9999mm
Cable Marking Tube Size Length: 12-25mm, Diameter: Ø2.5-Ø6mm
Stripping Length Front: 0.1-12mm, Rear: 0.1-12mm
Wire & Cable Type Electric wire, high temperature cable, Teflon insulated cable (AWG14#-AWG26#)
Features
  • The U-shaped motion system enables simultaneous operations, including stripping, twisting, tube insertion, terminal crimping, and tube heating. It delivers fast, coordinated actions with a capacity of 2,000–2,700 wires per hour, ensuring high efficiency.

  • An integrated fault detection system provides real-time alerts displayed on a touch screen, enabling operators to quickly identify and resolve issues, minimizing downtime and ensuring smooth operation.
