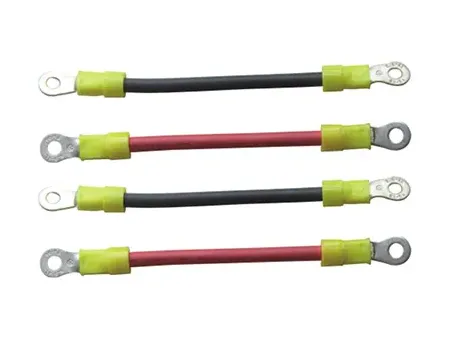

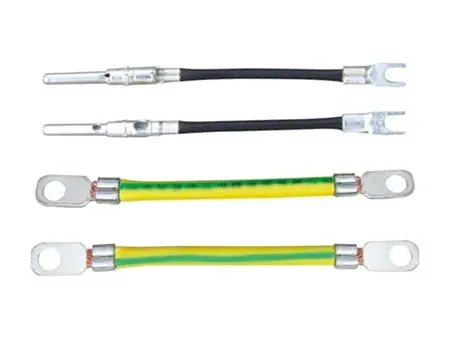

Our two-sided cold-pressed terminal crimping machines are designed for cutting, stripping, and crimping large-diameter wires. It supports single and dual-end configurations and is compatible with photovoltaic grounding wires, RV circular pre-insulated terminals, Y-shaped terminals, and automotive battery cables. These wire terminating machines are capable of handling both loose and pre-loaded terminals makes it a versatile option for demanding production environments.

Crimping Capacity
  • 2,200 wires per hour at 100mm length
Technical Data
General Model
Dimensions (L×W×H) 1200×800×1500mm
Weight 400kg
Power Supply AC220V 50Hz
Rated Current 10A
Power 3kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Space Requirement 1.5×1.5m
Crimping Force 3T
Functions Crimping Capacity 2200 wires/hr at 100mm length (depending on the wire length)
Wire Processing Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping one-sided stripping
Control System LCD display, single-chip microcontroller
Detection Devices Crimp test, wire shortage detection, air pressure test, paper winding inspection
Auxiliary Equipment Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Operation Control Wire feeding, cutting, stripping and movement are controlled via touch screen, with servo control
Optional Pressure Measuring Device Used to measure terminal crimping pressure
Application Range Cutting Length 80mm-690mm
Stripping Length Front: 1mm-15mm, Rear: 1mm-15mm
Wire & Cable Type Electric wire, high temperature cable, halogen-free cable, Teflon insulated cable, silicone insulated cable (AWG22#-AWG10#)
Features
  • Equipped with a servo motor to ensure precise positioning, fast operation, and consistent accuracy, delivering reliable results for large-diameter wire processing.

  • The vibration feeding system automates the delivery of loose terminals, reducing labor costs and optimizing efficiency.

  • Supports both loose terminals and pre-loaded terminals, providing flexibility for diverse production requirements.

  • Real-time fault detection with alerts displayed on a touch screen simplifies troubleshooting and maintains uninterrupted operation.
