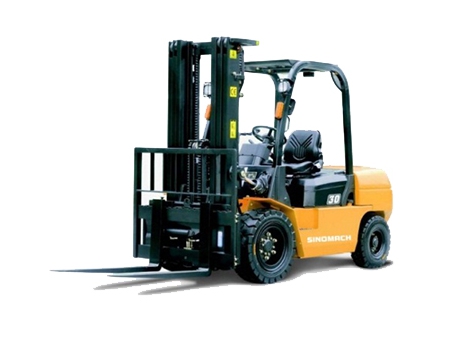

Diesel Forklift CPCD70

Request a Quote

View All: http://cn-changlin.com/8-8-forklift-truck.html

The diesel forklift offers enhanced operational visibility through an increased inside width of the inner mast and the distance between inner mast rails. The forward visibility is greatly improved by lowering the instrument panel, and the rearward visibility is enhanced by improving the design of counterweight;
The enlarged opening angle of hood and addition of left and right hood side plates make the maintenance of the forklift easier and quicker;
The aluminum plate-fin radiator offers efficient cooling of engine, optimized oil and water heat dissipation channel and double ventilation holes on counterweight further improve the cooling efficiency and ensure the reliable operation of the engine;
The engine of diesel forklift provides high power output, low emission and good cold starting performance, the energy consumption is reduced by 10%;
The overhead guard is fabricated using special-shaped steel tube, ensuring reinforced strength and improved sealing of cab;
The new generation of integrated electric box is adopted in the diesel forklift for easy maintenance and repairing, it has reasonable layout and good water-proof performance;
Small diameter steering wheel, electro-hydraulic system and double-handle combination switch are used for increased operator's comfort;

Model	CPCD70
Power type	Diesel
Rated load capacity (kg)	7000
Load centre (mm)	500
Rated lift height (mm)	3000
Free lift height (mm)	95
Fork size (L×W×T) (mm)	122015065
Mast tilt angle (F/R, α°/β°)	10°/12°
Fork overhang (wheel center to fork face) (mm)	605
Ground clearance (bottom of mast) (mm)	190
Length to face of fork (without fork) (mm)	3530
Overall width (wheel) (mm)	1990
Overhead guard height (mm)	2400
Wheelbase (mm)	2300
Turning radius (outside) (mm)	3350
Travel speed (loaden/unloaden) (km/h)	27/30
Lifting speed (loaden/unloaden) (mm/s)	480/510
Lowering speed (loaden/unloaden) (mm/s)	480/420
Max. gradeability (loaden/unloaden) %	32/20
Tire (front )	8.25-15-14PR
Tire (rear )	8.25-15-14PR
Total weight (kg)	9400
Engine model	YC4A115Z
Rated power	85kW@2200rpm
Rated torque	425N.m@1500rpm
