Horizontal High Flow Filter System

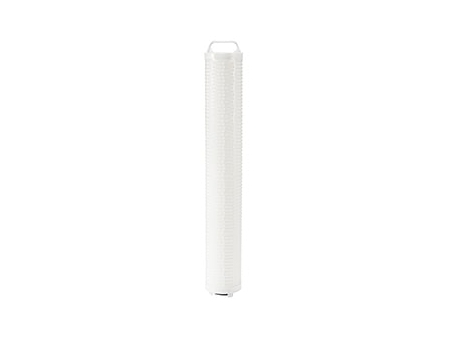

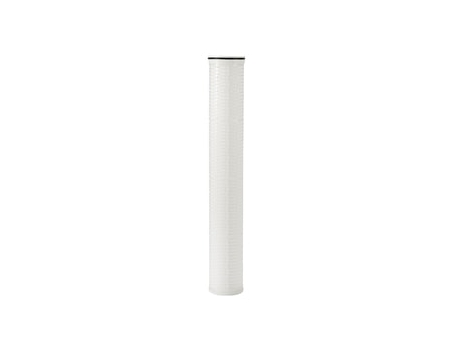

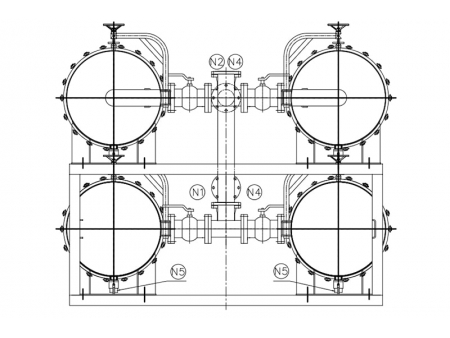

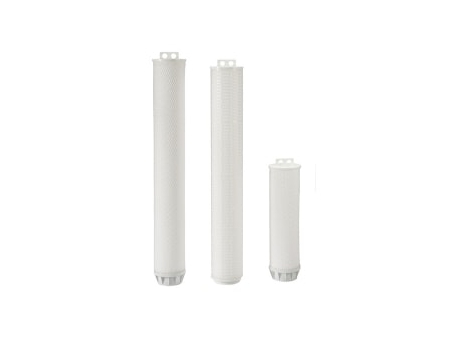

JDW horizontal high flow filter system is a precision filter combining stainless steel filter housing and high flow filter cartridge, which is provided with a skid-mounted structure. With a durable construction of premium quality stainless steel, the filter housing can withstand high pressure and flow rate, whereas other materials like plastic would crack under these conditions. PHF series high flow filter cartridges are provided for higher throughput while ensuring effective filtration. When it needs to be connected to other equipment or integrated into a processing line, this skid-mounted filter system allows for easy installation by simply connecting with pipes since it eliminates the need for installing additional valves and instruments.
| Filter Housing & Filter System | 304/316L |
| Vent/Drain Valve | 304/316L |
| Eyebolt | 304/316L |
| Legs | 304/316L |
| O-ring | Silicone/Fluoro Rubber/EPDM/PTFE |
| (*Customization available for special requirements) | |
| Connection | Eyebolt |
| Inlet/Outlet | Flange |
| Vent Valve | G1/2" |
| Drain Valve | G1" |
| Pressure Gauge | M14*1.5 |
| Design Pressure | 1.0Mpa/1.2Mpa |
| Max. Operating Temperature | 80℃ |
- Multi-stage filtration options cater to diverse customer requirements.
- The skid mounted design enhances portability and convenience.
- Widely utilized in pharmaceutical, chemical, food, beverage, water treatment, brewing, petroleum, dyeing, and environmental protection industries.
- Ideal for liquid clarification and purification in various fluid handling processes.
