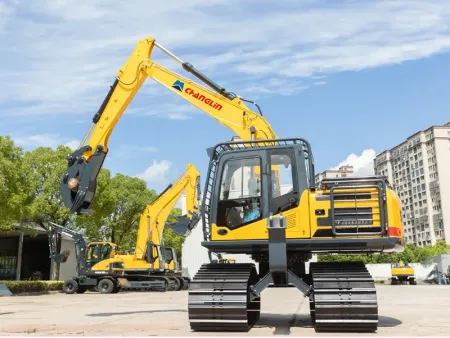

ZG135CF Log Loader Excavator
The log loader excavator is built on a standard excavator chassis and integrates proven in-house forestry technologies. Specially developed for timber handling in forest operations, it replaces traditional manual or animal-powered methods with efficient mechanical logging. It features a high-power hydraulic winch and log grapple, enabling long-distance dragging and accurate stacking of timber while minimizing material damage.
- Rated power 86kW@2200r/min
- A-Overall length 8389 mm
- N-Overall width 3010 mm

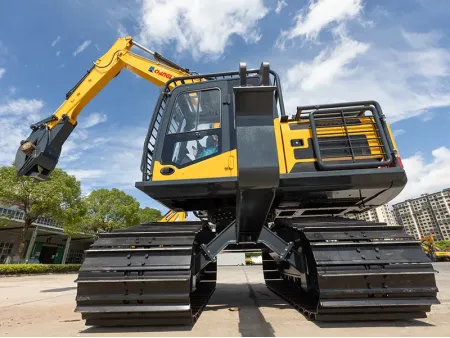

Fitted with 960 mm wide tracks that reduce ground pressure to just 29.7 kPa. Combined with 20-ton class travel motors, the machine delivers a strong traction force of 182 kN while maintaining stable travel speed.
An auxiliary arm allows seamless switching between logging and excavation tasks. A boom cylinder support reduces the swing radius to 2365 mm, ensuring easy access through narrow forest terrain.
An upgraded radiator system tailored for forestry conditions offers enhanced heat dissipation. Fine-mesh dust screens on the intake doors and roof vent prevent debris from clogging the radiator during extended operations.
Reinforced LED lighting improves visibility in dense woodland and low-light environments, supporting safer and more efficient operations.
- Model ZG135CF
- Operating weight (without gripper) 16500/16000kg
- Bucket capacity 0.6m³
- Engine model Cummins
- Rated power 86kW@2200r/min
- Fuel tank capacity 290L
- Travel speed 4.4/2.6km/h
- Swing speed 12r/min
- Gradeablity 70%
- Average grounding pressure 0.289/0.280kgf/cm²
- Max. hydraulic flow 2*160L/min
- Setting pressure 34.3MPa
- Hydraulic tank capacity 165L
- A-Overall length 8389mm
- B-Overall width 2739mm
- C-Overall height (to the top of boom) 2926mm
- D-Overall height(to the top of cab) 3207mm
- E-Counterweight ground clearance 1157.5mm
- F-Min. ground clearance 582mm
- G-Tail swing radius 2365mm
- H-Wheel base 3030mm
- J-Track length 3901mm
- K-Track gauge 2050mm
- L-Track width 3010mm
- M-Track shoe width 960mm (optional)
- N-Overall width 3010mm
