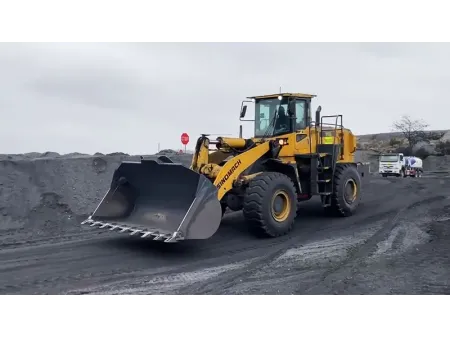

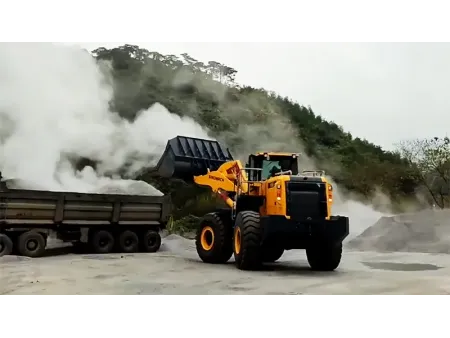

ZL60H Wheel Loader
- Length (with bucket on ground) 8714 mm
- Operating weight 19500 kg
- Rated bucket capacity 3.7 m³
- Rated output 175 kW
The articulated frame with tapered roller bearings increases the contact surface, ensuring reliable joint performance even under tough working conditions.
Equipped with the ZF 4BP210 dual power transmission system, this wheel loader boasts an electro-hydraulic fixed-shaft power-shift gearbox that allows for smooth and safe operation, with the added benefit of forced downshifting for better control and efficiency.
The loader uses a small displacement steering gear and a low-pressure load-sensing hydraulic flow amplifier valve. This combination allows for incredibly easy steering, greatly reducing operator fatigue. The adjustable steering wheel further enhances comfort and control.
This model of wheel loaders is designed for easy maintenance, with centralized relays and fuse boxes, external grease fittings, and pressure test ports located conveniently at the front of the auxiliary box.
Overall Dimensions
- Length (with bucket on ground) 8714mm
- Width (to outside of wheels) 2965mm
- Bucket width 3048mm
- Height (to the top of the cab) 3550mm
- Wheel base 3300mm
- Min. ground clearance 498mm
Performance
- Rated load 6000kg
- Operating weight 19500kg
- Rated bucket capacity 3.7m³, (optional 2.6-5.0 m³)
- Max. dump clearance 3393mm
- Dump reach 1365mm
- Min. turning radius (wheel) 6350mm
Diesel Engine
- Model ShangChai
- Type Direct injection
- Rated output 175kW
- Displacement 10.5L
- Rated speed 2200r/min
- Max. torque 912N.m@1400r/min
