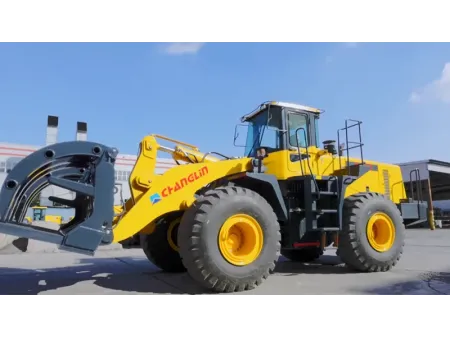

ZL80H Wheel Loader
Designed for heavy-duty operations, this wheel loader is powered by a Cummins engine, offering exceptional low-speed torque and high load performance. With a robust 423L fuel tank, it meets the demands of continuous, high-intensity tasks in mining, port, and construction sites. The loader’s efficiency and power ensure maximum productivity under challenging conditions.
- Length (with bucket on ground) 8696 mm
- Operating weight 23500 kg
- Rated bucket capacity 4.2 m³
Powered by a Cummins engine delivering 216-226 kW and 1478 N·m of peak torque, providing outstanding performance for heavy-duty tasks with low-speed, high-load efficiency.
The ZF 4WG260 power-shift transmission and wet multi-plate limited-slip axle offer 222 kN of traction and a maximum speed of 37 km/h, enhancing maneuverability by 30% on uneven terrains.
An automatic bucket leveling function improves accuracy with a deviation of ≤±2°, optimizing lifting and dumping speeds (6.1 seconds for lifting and 1.9 seconds for dumping) by 25% in heavy-load operations.
Equipped with wet multi-plate brakes and dual hydraulic braking systems, offering 16 MPa of braking pressure with a 50% faster response time in demanding conditions.
A centralized lubrication system and large 423L fuel tank extend maintenance intervals by 30%, providing up to 10 hours of continuous operation in high-temperature environments.
Overall Dimensions
- Length (with bucket on ground) 8696mm
- Width (to outside of wheels) 3099mm
- Bucket width 3250mm
- Height (to the top of the cab) 3710mm
- Wheel base 3400mm
- Min. ground clearance 504mm
Performance
- Rated load 7500kg
- Operating weight 23500kg
- Rated bucket capacity 4.2m³, (optional 3.2-4.8m³)
- Max. dump clearance 3220mm
- Dump reach 1275mm
- Min. turning radius (wheel) 6486mm
Diesel Engine
- Model Dongfeng Cummins
- Type Direct injection
- Rated output 108kW
- Displacement 5.9L
- Rated speed 2200r/min
- Max. torque 440N.m@1500rpm
