JW-MIX1 Vertical Form Fill and Seal Packaging Line with 10 Head Weigher Manufacturer

JW-MIX1 Vertical Form Fill and Seal Packaging Line with 10 Head Weigher

Request a Quote

View All: http://jwweigher.com/9-5-1-jw-mix1-weighing-and-packing-line.html

Vibratory feeder
Working platform
Z-shaped elevating conveyor
10 heads weigher
Freefall metal detector
Vertical form fill and seal machine
Finished product conveyor

The JW-MIX1 weighing and packing line for mixed products is composed of the vibratory feeder, working platform, Z-shaped elevating conveyor, 10 heads weigher, free-fall metal detector, vertical form fill seal machine and finished product conveyor in order to automatically complete the feeding, dosing, weighing, bag forming and filling, bag sealing, label printing, mixing and discharging processes.

This production line is equipped with 2 multihead weighers to enhance the production efficiency, both of which are controlled using the same control panel so that the highest weighing accuracy is guaranteed.

Range of application

Applicable products: All types of particles, pieces, strips, round or irregular shaped products such as candies, seeds, pet foods, puffed foods, hardware, rubber parts and more.

Pouch types

① 3-side seal pouch
② 4 side seal pouch
③ Flat pouch

④ Standard stand-up pouch
⑤ Back sealed pouch
⑥ Quad seal gusseted pouch

Weighing and packing line for mixed products solutions

Model series	Standard configuration	Maximum packing speed	Maximum packing weight	Film width	Film thickness	Multihead weigher power	Packing machine power	Voltage
2 in 1 mixing	20 heads weigher	60p/min	2000g	180-520mm	0.04mm-0.15mm	990W	3.4KW	220v
3 in 1 mixing	24 heads weigher	60p/min	300g	180-520mm	0.04mm-0.15mm	990W	3.4KW	220v
4 in 1 mixing	24 heads weigher	60p/min	240g	180-520mm	0.04mm-0.15mm	990W	3.4KW	220v
4 in 1 mixing using 32 heads weigher	32 heads weigher	60p/min	400g	180-520mm	0.04mm-0.15mm	990W	3.4KW	220v
10 in 1 mixing using 10 heads weigher	10 heads linear weigher	50p/min	1000g	180-520mm	0.04mm-0.15mm	990W	3.4KW	220v

Note: Kenwei provides custom cup filling and capping line if you have specific requirements.

Selective assembly equipment

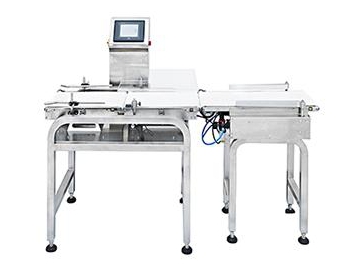

Check weigher
Metal Detectors

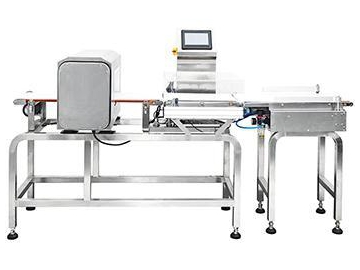

Combined metal detector and check weigher

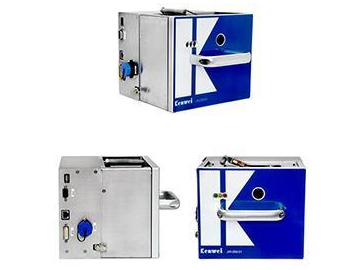

Thermal Transfer Overprinter

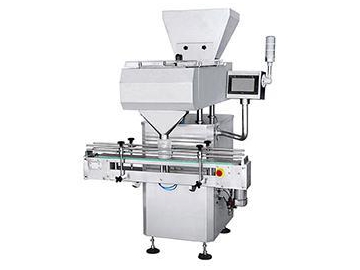

Count verification machine

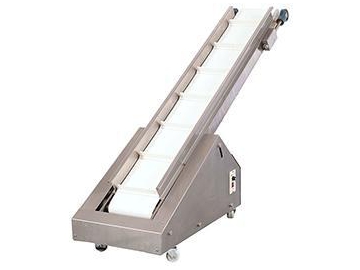

Conveyor equipment
