Expanded Metal Mesh
Steel Grating / Expanded Mesh / Expanded Metal Mesh

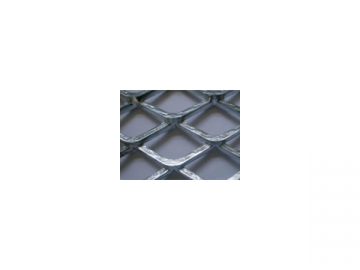

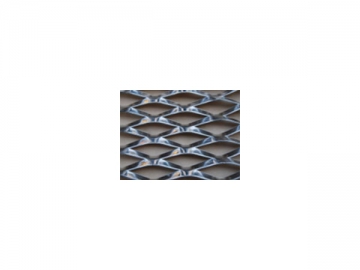

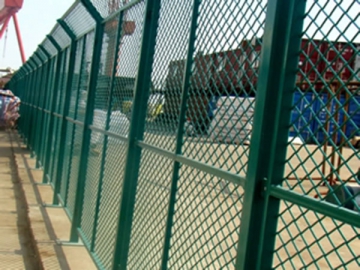

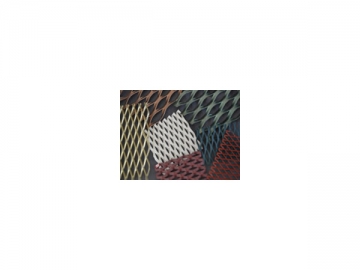

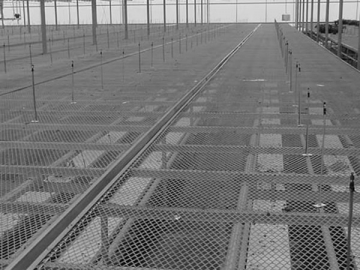

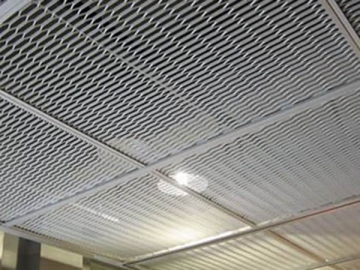

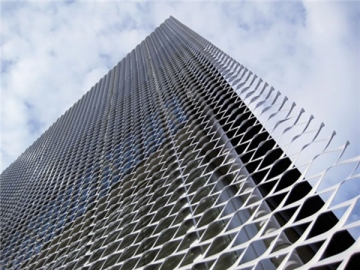

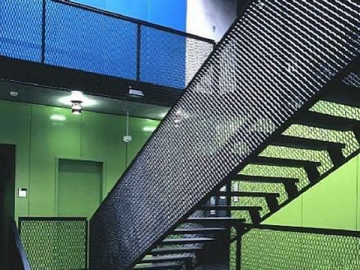

Our expanded metal mesh is produced using the finest steel sheets that are expanded through incising and stretching. The final product looks great and features lightweight yet high strength performance. The metal grates can be used for ventilation, fencing, walkways and many other applications.
Technical Drawing
Terminology
SWD: The distance from the center of one bond to the center of the bond in the diamond at the direction of short diagonal line.
LWD: The distance from the center of one bond to the center of the other bond in the diameter at the direction of long diagonal line.
SWO (Short Way of Opening): The length of the short diagonal line of the diamond opening (shown in the above drawing).
LWO (Long Way of Opening): The length of long diagonal line of the diamond opening (shown in the above drawing).
Strand: The edge of the diamond opening of the expanded metal mesh (as shown).
Strand Width: The length of the metal sheet used for making one strand.
Bond: The joint of two strands.
Strand Thickness: The thickness of raw material.
Coil: The product would into a roll with specific width and length.
Netting Sheet: The sttel screen sheet with specific length and width.

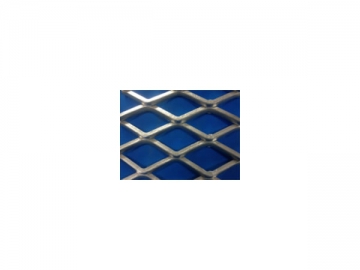

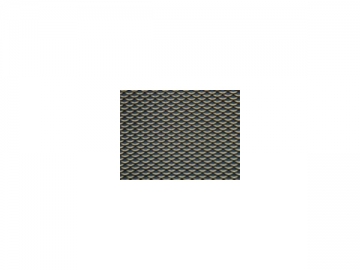

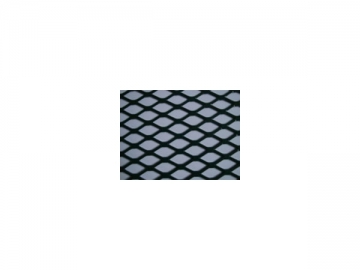

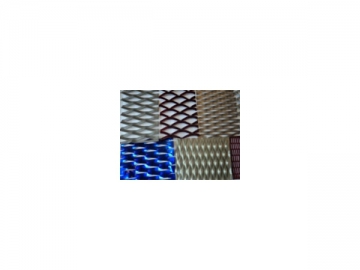

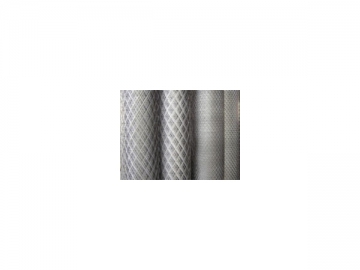

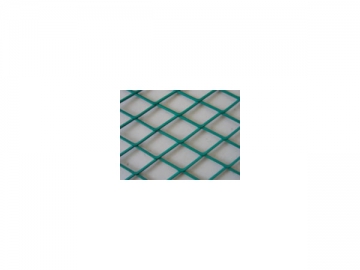

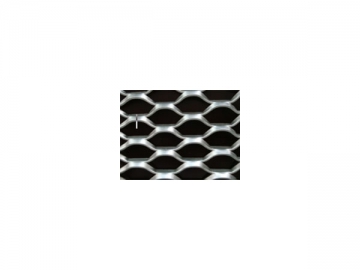

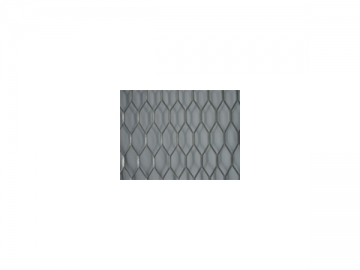

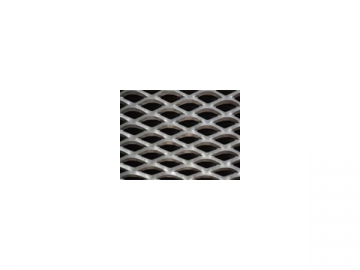

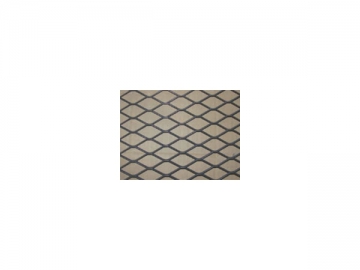

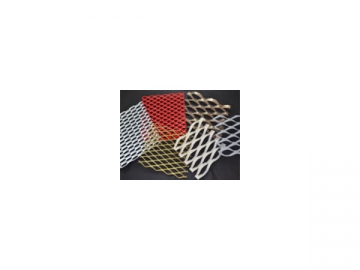

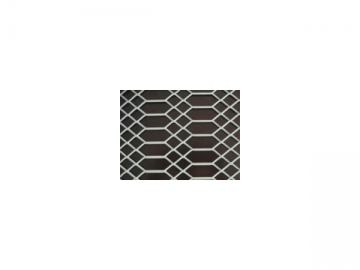

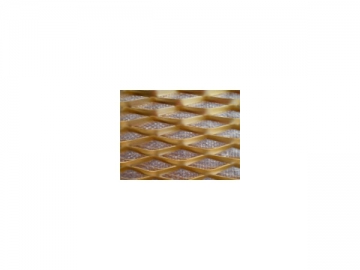

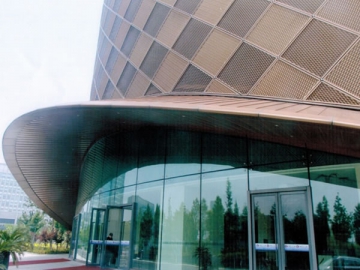

Pictures
