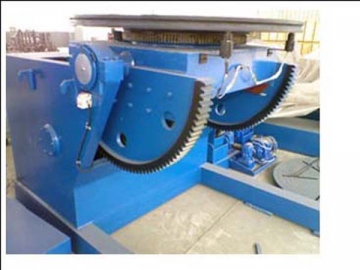

120° Light Duty Welding Positioner
Request a Quote
View All: http://weldingtoolsmaker.com
120° Light Duty Welding Positioner
Technical Parameters
Model | BY-5000 | |
Input power | AC220V /AC380V | |
Power of Motor for Rotary | AC 2.2kW | |
Power of Motor for Tilting | AC 1.5kW | |
Max. Carrying Capacity | 3000kg | |
Max. Distance of Center of Gravity | 300mm | |
Max. Eccentricity | 200mm | |
Worktable | Diameter | 1500mm |
Rotating Speed | 0.05-5rpm | |
Tilting Speed | 0.5rpm | |
Tilting Angle | 0-120° | |
Tilting Mode | Electric Driving | |
Max. Rotating Diameter | 2500mm | |
Outside Dimension | 2600×1400×1700mm | |
Weight | 5000 kg | |
