Automatic Rotary Vacuum Premade Pouch Packaging Machine Manufacturer

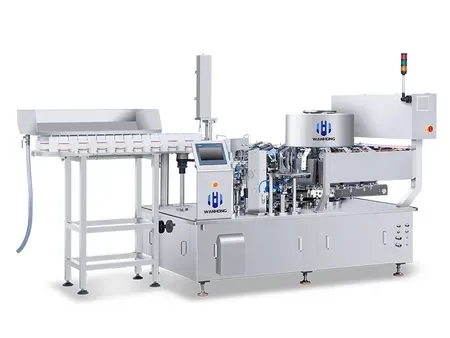

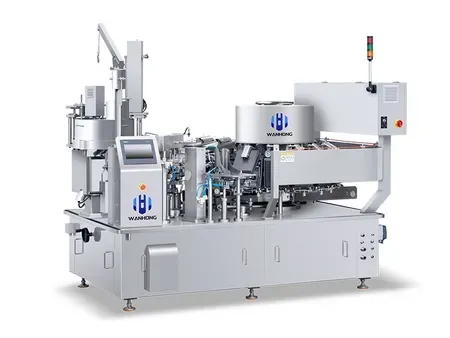

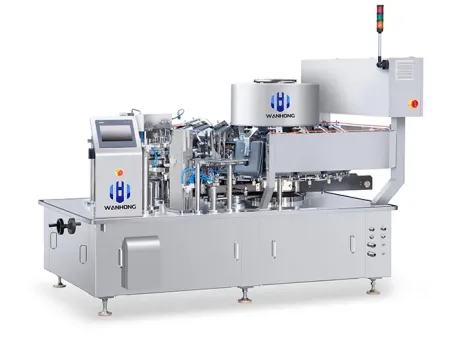

Automatic Rotary Vacuum Premade Pouch Packaging Machine

Request a Quote

View All: http://pouchpacking-en.com/4-rotary-vacuum-premade-pouch-packaging-machine.html

Rotary pouch filling machine with vacuum sealing for packaging beans, fish, meat, pickles and other food products into premade pouches

Bag width
up to 300mm
Packaging speed
up to 100 bags per minute

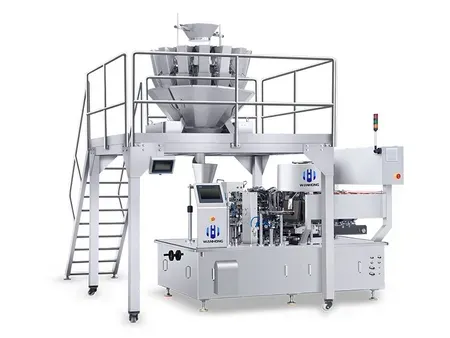

Vacuum Premade Pouch Packaging Machine for Granules

Vacuum Premade Pouch Packaging Machine with Cup Filler

Vacuum Premade Pouch Packaging Machine with Volumetric Cup Filler

The rotary vacuum premade pouch packing machine is fully washdown-ready with an integrated water tank, making maintenance easy. The design is available in either a mirror or brushed finish. It can handle bag widths from 55mm to 120mm, and the filler is customizable. This vacuum premade pouch packing machine is ideal for packing various materials such as powders, granules, and liquids (at room temperature) into vacuum-sealed pouches.

The vacuum packing machine is especially suitable for materials like nuts, cooked food, frozen food, preserved food, eggs, and pickles. It works with flat pouches.

This vacuum premade pouch packing machine offers a significant increase in capacity compared to traditional single-chamber vacuum packing machines, thanks to the application of up to 16 vacuum chambers. This results in continuous vacuum packing, reducing labor costs and improving efficiency.

Automatic Rotary Vacuum Premade Pouch Packaging Machine

Cooked Beef Tripe Packaging Machine

Cooked Food Packaging Machine

Applications

Beans packaging
Cheese packaging
Cooked food packaging

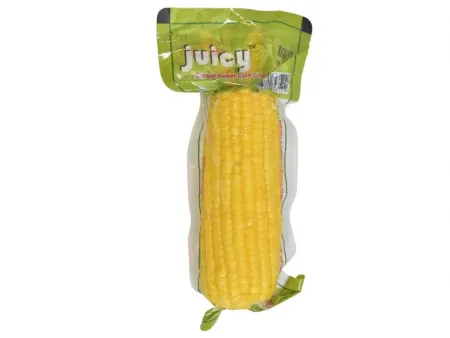

Corn cob packaging
Corn flake packaging

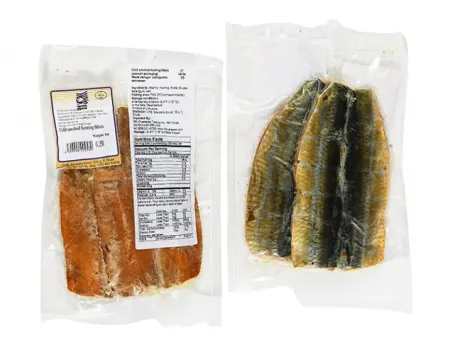

Dried fish/smoked fish packaging

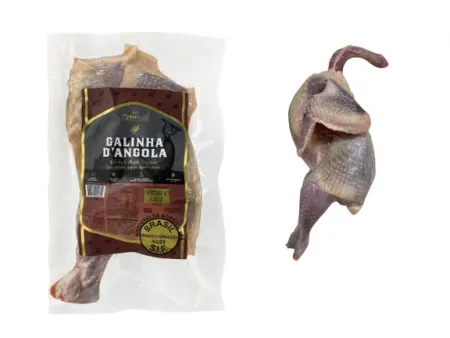

Raw duck packaging

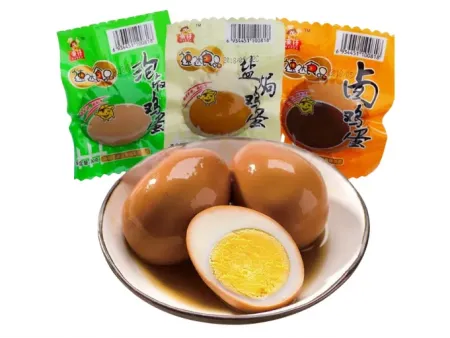

Soy egg packaging
Fish ball packaging
Garlic packaging
Pickled radish packaging
Pistachio packaging
Fish packaging
Lamb packaging
Noodle packaging
Cashew nuts packaging
Diced potato packaging
Spice powder packaging
Rice packaging
Sausage packaging

Bag Styles

Four side seal bag
Stand-up bag

Specifications

Model	WHZK10-16-1218	WHZK10-12-1724	WHZK10-10-2430	WHZK8-10-3040
Bag size	W: 55-120mm L: 80-180mm	W: 80-170mm L: 80-240mm	W: 140-240mm L: 100-300mm	W: 140-300mm L: 100-400mm
Packaging speed	80-100 bags/min	60-75 bags/min	40-45 bags/min	30-40 bags/min
Power	5.5kW	4.5kW	4.5kW	6kW
Machine dimensions	2500×1500×1600mm	2500×1500×1600mm	2640×2030×1800mm	2510×1600×1600mm
Machine weight	3000kg	3000kg	3200kg	3000kg
Air consumption	0.6m³/min	0.6m³/min	0.8m³/min	0.8m³/min

Standard Configurations

PLC	Frequency Converter	Touch Screen	Solenoid Valve	Bearing
Siemens	Siemens	Siemens	FESTO	IKO/IGUS

Features

Fast Packing Speed 100 bags/min
Wide Packaging Range Capable of packing products like konjac snacks, chicken legs, duck legs, and more, with a packaging range up to 5kg.

Workflow

Step 1

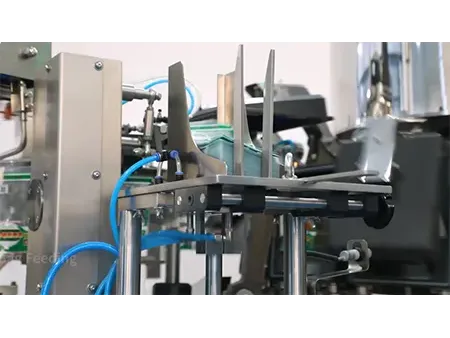

Bag Loading
Automatically pick up the premade pouch from the bag magazine.
Step 2

Date Coding
Print the production date or batch number on the bag.
Step 3

Bag Opening
Use suction cups or mechanical devices to open the bag mouth, ensuring it is fully opened.
Step 4

Filling
Accurately fill the material into the bag.
Step 5

Secondary Filling/Stirring
Use the stirring device to ensure even material distribution in the bag.
Step 6

Bag Mouth Cleaning
Clean the bag mouth to ensure no residue remains, preparing it for sealing.
Step 7

Reserved Position
Reserve space for the next vacuum sealing process.
Step 8

Transfer to Vacuum Chamber
Move the bag into the vacuum chamber for vacuum packing.
Step 9

Vacuum Sealing
Complete the vacuum packing and sealing, ensuring the bag is airtight to prevent contamination.

Details

Set the parameters, start, or turn off functions using this screen, giving you full control over the packaging process.

Suitable for flat bags, this system can store a large pile of bags at once, reducing labor costs and improving efficiency.

Bag Gripping

The foldable flexible door provides convenience and easy access for smooth operation.

The sliding electric cabinet ensures easy access and space efficiency for better maintenance and operation.

The suction cup mechanism opens the bag, ensuring smooth and precise handling.

Date Coding

Vacuum and heat seal the bag, ensuring an airtight closure for product safety and freshness.

The finished bags are output for further processing or packaging.

Vacuum Pump

Suitable for loading large and soft bags, ensuring smooth handling during the packaging process.

Suitable for loading uneven bags, such as stand-up zipper pouches, ensuring reliable filling and sealing.

Suitable for stand-up pouches, this feature opens the bottom of the bag with a sensor. If the bag is not fully opened, it will not be filled.

Suitable for granules, this feature prevents particles from blocking the bag opening, ensuring smooth filling.

Suitable for granules, this feature prevents particles from blocking the hopper, ensuring continuous material flow.

Suitable for liquids, this feature prevents liquid residue from remaining at the bag opening, ensuring a clean and secure seal.

Embossed Printing

Inkjet Printing

Laser Printing

Automatic Lubrication System

What is the working principle of the fully automatic rotary premade pouch vacuum packing machine?

The process involves placing products into pre-made pouches, extracting the air inside using a vacuum system, and then heat-sealing the pouch to ensure the packaged food or items remain fresh for a long time and are protected from external contamination.

How safe is the fully automatic rotary premade pouch vacuum packing machine?

The fully automatic rotary premade pouch machine is equipped with multiple safety features, including overload protection, an emergency stop switch, safety rope switches, and an anti-leakage design, ensuring the safety of personnel during operation.

How can the vacuum packing equipment be upgraded?

The rotary vacuum premade pouch packing machine is configured with 10 16 workstations, with a maximum speed of 120 bags per minute.
It uses mechanical cam drive control for smooth and reliable operation.
The system features an automatic lubrication system that requires no maintenance.
Equipped with a bag circulation system, allowing multiple cycles.

Does the vacuum packing equipment support different sealing methods?

Yes, it supports various sealing methods, including mesh and straight-line sealing. The most suitable sealing method can be selected based on the product being packaged.

Can the vacuum pump be replaced?

Yes, the vacuum pump is one of the core components of the fully automatic rotary premade pouch vacuum packing machine and can be replaced or maintained according to usage. The type and replacement cycle of the vacuum pump depend on the equipment model and operating environment.

Does the packaging speed and accuracy of the vacuum packing machine affect production efficiency?

Yes, there is a balance between speed and accuracy. High speed may lead to weak seals or leakage, so it's important to adjust the vacuum premade pouch packing machine's speed and accuracy based on specific production needs. Lowering the speed when high precision is required can improve product quality.

How can the vacuum degree and sealing temperature be adjusted for different packaging items?

The vacuum premade pouch packing machine offers various parameter settings that allow operators to adjust the vacuum degree, sealing temperature, and time based on the characteristics of the packaged product (e.g., fragile or perishable items).

What are the advantages of the fully automatic rotary premade pouch vacuum packing machine?

The fully automatic rotary premade pouch vacuum packing machine uses a fully mechanical drive system and operates with 10 16 vacuum chambers, achieving significantly higher output compared to traditional single-chamber machines. This reduces labor costs and increases production efficiency. The vacuum premade pouch packing machine offers a fast packaging speed of up to 100 bags per minute and a wide range of packaging applications, including nuts, cooked food, frozen food, and more.

Contact us to find out how the automatic rotary vacuum premade pouch packing machine can optimize your packaging process and improve efficiency!
