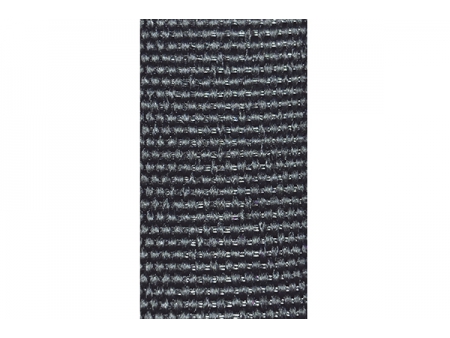

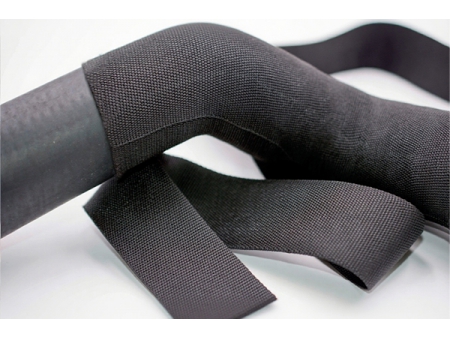

Heat Shrink Textile Sleeving

Request a Quote

Website: http://sleeving-product.com/heat-shrink-textile-sleeving-1-8.html

HST2441

• Material: PET PE
• Color: Black
• Operating Temperature: -40°C to 125°C
• Shrink Temperature: 200°C ±20°C
• Abrasion Resistance: ≥144,000 cycles (tested based on TL52668-A)
• Flame Retardancy:
  1. Finished product: Complies with GB 8410-2006 (burn rate ≤100 mm/min)
• Nominal Shrink Ratio: 2:1
• Packaging: Paper spool

Now

HST2441 series heat-shrink textile sleeving is manufactured from environmentally friendly, non-toxic PET fibers combined with PE heat-shrink filaments. It offers excellent noise reduction, flexibility, abrasion resistance, and heat-shrink performance. The sleeving can be easily installed on irregular hoses and effectively reduces wear and noise in harsh environments, extending equipment service life.

Applications

The heat shrink textile sleeving is mainly used for automotive pipelines and new energy copper and aluminum busbars. It provides superior abrasion protection for rubber hoses and pipelines.

Certifications

Parameters

Model	Flat Width (mm)	Original Diameter (mm)	Shrunk Diameter (mm)	Packaging Length (m/spool)	Item Code
HST244100601	12±2	≥6	≤3	100	RS-006
HST244100801	16±2	≥8	≤4	100	RS-008
HST244101001	20±2	≥10	≤5	100	RS-010
HST244101201	24±3	≥12	≤6	100	RS-012
HST244101601	29±3	≥16	≤8	100	RS-016
HST244102001	37±3	≥20	≤10	100	RS-020
HST244102501	45±3	≥25	≤12.5	100	RS-025
HST244103001	54±4	≥30	≤15	50	RS-030
HST244103501	60±4	≥35	≤17.5	50	RS-035
HST244104001	68±4	≥40	≤20	50	RS-040
HST244105001	87±5	≥50	≤25	50	RS-050
HST244106001	100±5	≥60	≤30	50	RS-060
HST244107001	118±5	≥70	≤35	50	RS-070
HST244108001	132±5	≥80	≤40	50	RS-080
HST244109001	145±5	≥90	≤45	50	RS-090
HST244110001	164±5	≥100	≤50	50	RS-100

Available in custom cut lengths.
Custom sizes available upon request.

For detailed information, please download the product datasheet.
