PA Textile Sleeving

Request a Quote

Website: http://sleeving-product.com/pa-textile-sleeving-4-6.html

TS2562

• Color: Black
• Operating Temperature: −40°C to 150°C
• Abrasion Resistance: Grade 7, >140,000 cycles (ISO 6722:2013)
• Cutting Method: Hot cutting

Now

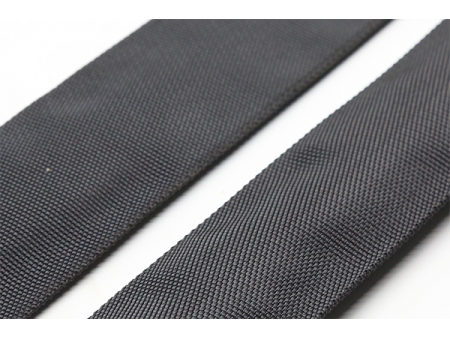

TS2561 series is a durable textile sleeving woven from high-quality polyester multifilament yarns. It provides reliable abrasion resistance, noise reduction, and corrosion resistance, making it suitable for hoses, cables, and wires protection in demanding applications.

Applications

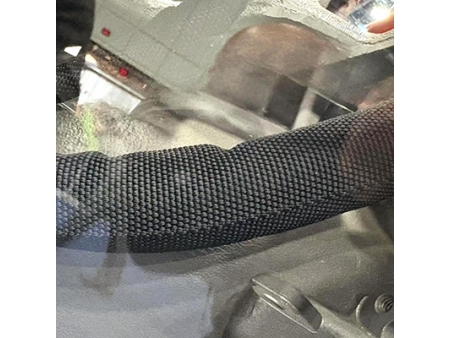

This sleeving is suitable for heavy machinery and industrial equipment, providing robust protection for rubber hoses and wire harnesses under high-load conditions.

Certifications

Parameters

Model	Diameter (mm)	Width (mm)	Thickness (mm)	Packaging Length (m/reel)	Item Code
TS25621001	10	20±2	1.1±0.2	50	NC-010
TS25621301	13	25±2	1.1±0.2	50	NC-013
TS25621601	16	30±2	1.1±0.2	50	NC-016
TS25621901	19	35±2	1.1±0.2	50	NC-019
TS25622301	23	40±2	1.1±0.2	50	NC-023
TS25622901	29	50±2	1.1±0.2	50	NC-029
TS25623201	32	55±2	1.1±0.2	50	NC-032
TS25623801	38	65±3	1.1±0.2	50	NC-038
TS25624201	42	70±3	1.1±0.2	50	NC-042
TS25624801	48	80±3	1.1±0.2	50	NC-048
TS25625501	55	90±3	1.1±0.2	50	NC-055
TS25626101	61	100±3	1.1±0.2	50	NC-061
TS25626801	68	110±3	1.1±0.2	50	NC-068
TS25627401	74	120±3	1.1±0.2	50	NC-074

Available in custom cut lengths.
Custom sizes available upon request.

For detailed information, please download the product datasheet.
