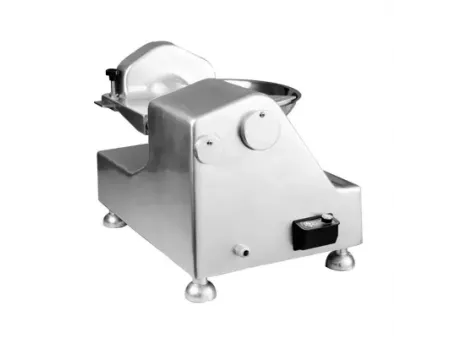

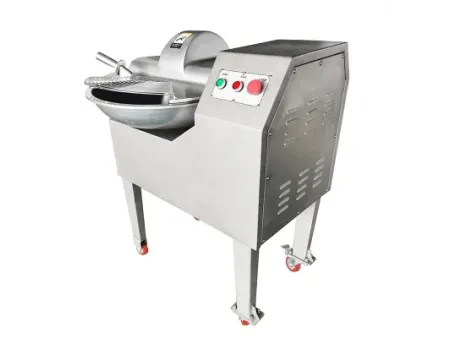

Cutting Mixer Machine (Horizontal Bowl Cutter)
The cutting mixer machine is used for efficient chopping and mixing of food ingredients in professional kitchens and food processing environments. Kitchens benefit from the horizontal bowl cutters as they can handle daily prep tasks with consistent results and smooth operation.
This horizontal bowl cutter range includes HLQ-8 / HLQ-14 / HLQ-20 / HLQ-20L models, with a processing capacity of 4-10 kg and power options from 550 W to 1.5 kW. It is able to adapt to different batch sizes and production demands. The bowl rotation speed of 12-18 rpm is carefully controlled to provide a stable cutting force for various ingredients. The food-grade stainless steel body is suitable for humid back-of-house environments and is easy to clean after use. The blade assembly closely follows the bowl contour, ensuring even chopping while helping ingredients retain their natural texture and freshness. Disassembly is very quick that simplifies the cleaning process with minimal manual labor.
Ideal for restaurant kitchens, meat processing plants, food processing factories, and central kitchens. It is used for efficient filling preparation and fine chopping and mixing of ingredients. It processes raw material for products such as dumplings, meatballs, and sausages.
- Meat cutting
- Vegetable cutting
- Main body and control assembly
- Cutting blades
- High-power motor
- Power switch
| Model | ||||
| Voltage | 230/110V | 230/110V | 110/230/380V | 230/380V |
| Power | 550W | 750W | 1.5kW | 1.5kW |
| Motor Speed | 1450 rpm | 1450 rpm | 1440 rpm | 1440 rpm |
| Knife Speed | 1450 rpm | 1450 rpm | 1440 rpm | 1440 rpm |
| Bowl Speed | 18 rpm | 17 rpm | 12 rpm | 12 rpm |
| Bowl Diameter | 385mm | 460mm | 635mm | 635mm |
| Max. Batch Capacity | 4kg | 7kg | 10kg | 10kg |
| Min. Batch Capacity | 1kg | 2kg | 5kg | 5kg |
| Net Weight | 39kg | 50kg | 132.4kg | 128.2kg |
| Gross Weight | 41.8kg | 65.5kg | 162.2kg | 157kg |
| Dimensions | 680×441×385mm | 760×515×452mm | 899×707×926mm | 907×699×1025mm |
| Packing Size | 756×500×465mm | 853×603×601mm | 1050×810×1085mm | 804×1031×1185mm |
