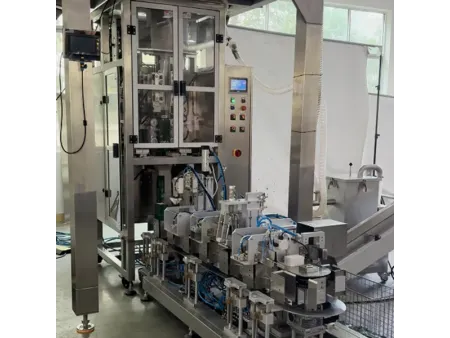

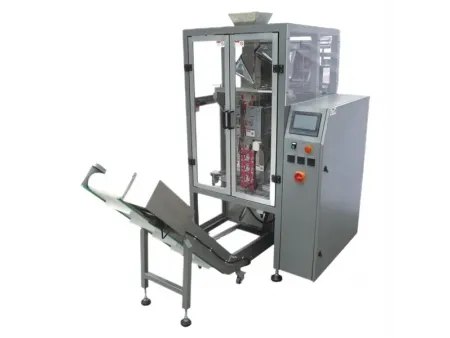

Vertical Form Fill Seal Machine for Quad Seal Bags
Request a Quote
The vertical form fill seal machine for quad seal bags uses a vertical form fill seal structure to perform metering, filling, bag forming, four-side sealing, and cutting in a single operation.
Applications
This automatic packaging machine is suitable for a range of granular and tablet products across the food, pharmaceutical, and chemical industries. It performs automatic metering, filling, bag forming, and sealing, and is suitable for biscuits, potato chips, shrimp snacks, pet food, and similar products.
Options
- Inclined packaging design
- Date printer
- Stainless steel machine frame
- Bag sealing and twisting device
Features
- Automates product feeding, metering, filling, bag forming, sealing, cutting, and production date printing
- Servo-driven dual-belt film pulling system ensures stable and precise operation
- Photoelectric sensors track and position printed marks, enabling complete branding graphics with color registration marks.
- PLC with color touchscreen allows easy setup and adjustment of packaging parameters. The system provides intuitive production display, automatic fault alarms, self-stop, and self-diagnosis functions
- PID digital temperature control with sealing deviation within ±1°C
- Four-side sealing produces box-style bags with precise edges
- Inclined packaging option provides better protection for fragile items
- Compliant with CE safety standards.
Specifications
| Model | ||
| Sealing Type | Quad Seal Back Seal | Quad Seal |
| Bag Length (mm) | 150-480 | 150-480 |
| Max. Film Width (mm) | 520 | |
| Packing Speed (Bag/min) | 20-50 | |
| Power Supply | 220V, 6kW | |
How suitable is the granule packing approach for snack brands with frequent SKU changes?
How suitable is the granule packing approach for snack brands with frequent SKU changes?
The granule packaging system includes recipe storage that enable product changeovers and line switching.
