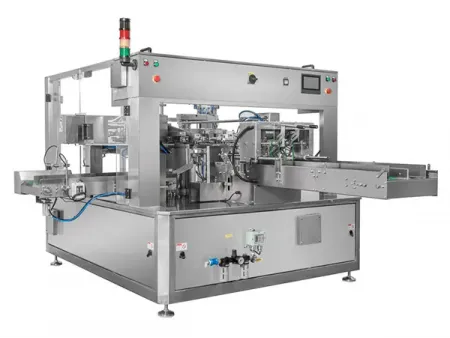

Rotary Premade Pouch Packaging Machine, Double Lane

Rotary Premade Pouch Packaging Machine, Double Lane
Rotary Premade Pouch Packaging Machine, Double Lane
Request a Quote

Designed with double lane, rotary premade pouch packaging machine is suitable for automatic packaging of powders, granules, liquids, and other types of materials. It features a PLC with color touchscreen, combined with precise bag-opening detection, PID temperature control, and a 304 stainless-steel frame for stable and reliable operation. The dual-lane structure allows high-level packaging and supports multiple filling methods safeguarding a hygienic solution for pre-made pouches.

Leave a Message
Features
  • Panasonic PLC with color touchscreen
  • Bag feeding conveyor
  • Mechanism for bag opening with intelligent bag detection
  • PID temperature controller
  • The machine frame made of 304 stainless steel
  • Color touchscreen
Applications
  • Powders: flour, coffee, and other powder materials
  • Granules: sugar, nuts, candies, seeds, etc. (using cup filler or multi-head weighing filler)
  • Liquids/Pastes: water, beverages, honey, and other liquid or paste products
Operation Stages
  • Bag feeding
  • Coding and zipper opening (optional)
  • Stand-up pouch opening
  • Top bag opening
  • First filling
  • Second filling (optional)
  • Heat sealing
  • Cooling and output
Specifications
  • ModelAP-8BT-170D
  • Pouch Length Range130-350mm
  • Pouch Width Range95-170mm
  • Packing Speed50-100 pouches/min
  • Power Supply3Ph, 220/380V, 50/60Hz; 4.5kW
  • Machine DimensionsL3482×W2342×H1970mm

The powder premade pouch packaging solution meets the typical requirements of medium-speed production lines.
