Automatic Premade Pouch Packaging Machines

Request a Quote

Website: http://packmachinery-en.com/automatic-premade-pouch-packaging-machine-1.html

Measurement System

Auger Filler

Applications
The auger filler is engineered for powder and ultra-fine powder materials. It is suitable for the automated packaging of products including milk powder, rice flour, nutritional foods, solid beverages, food additives, monosodium glutamate, seasonings, glucose, dyes, fragrances, and similar powder-based materials.

Model: APF-500A
Auger Diameter: ⌀ 22-46 (mm)
Filling Range: 5-500g
Packing Speed: 15-80 bags/min
Filling Accuracy: ≤0.3-1%
Total Power: 1.4kW
Hopper Capacity: 26L

Model: APF-1000A
Auger Diameter: ⌀ 28-84 (mm)
Filling Range: 10-2000g
Packing Speed: 25-80 bags/min
Filling Accuracy: ≤0.3-1%
Total Power: 1.9kW
Hopper Capacity: 50L

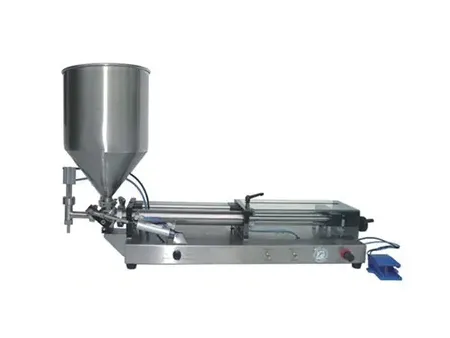

Piston Pump

Applications
Suitable for the filling and packaging of a wide range of liquid products, including sauce-based products and cosmetic formulations.
Filling Range
3-5000 ml, requiring replacement with the appropriate model depending on the desired capacity range.
Adjustment Method
The piston pump utilizes mechanical adjustment, while the cam rotor pump employs electronic adjustment.

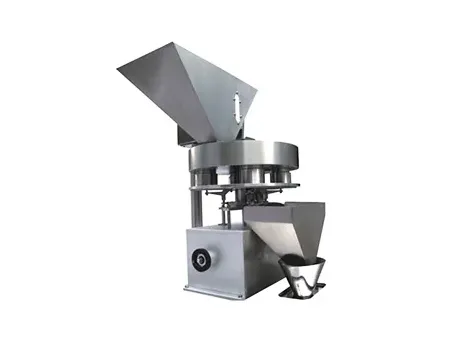

Volumetric Cup Filler

Applications
Suitable for the automated weighing of small granular materials and free-flowing powder materials, including sugar, seasonings, and seeds.
Single Weighing Range
10-1000g requiring replacement of the measuring cup with the appropriate

Multihead Weigher

Applications
Suitable for the quantitative filling of irregular materials in granular, flake, strip, and other non-uniform forms, including puffed foods, confectionery, chocolate, biscuits, preserved fruits, melon seeds, potato chips, peanuts, mixed nuts, dumplings, cereals, pet food, hardware components, plastic parts, and similar irregular solid materials.

Model	Heads	Levels	Hopper Capacity	Combination Weight	Weighing Accuracy	Max. Speed
MHW-A9	9	1	1.8L	15-500g	1-3g	45 pouches/min
MHW-A10	10	2	1.6/2.5L	10-800g	0.2-1g	65 pouches/min
MHW-AS10	10	2	0.5L	3-200g	0.3-2.5g	65 pouches/min
MHW-AM10	10	2	5L	150-1500g	0.5-3.0g	65 pouches/min
MHW-A14	14	2	1.6/2.5L	10-1500g	0.2-1g	120 pouches/min
MHW-AS14	14	2	0.5L	3-200g	0.1-1.0g	120 pouches/min
MHW-AM14	14	2	5L	100-3000g	0.5-3.0g	80 pouches/min
MHW-A16-I1	16	2	1.6L	10-300g	0.5-2g	60×2 pouches/min
MHW-A20-II	20	2	1.6L	10-800g	0.1-1g	60×2 pouches/min

Linear Weigher

Applications
Suitable for the automated weighing of small granular materials and free-flowing powder substances, including sugar, seasonings, seeds, and other similar materials.

Model	Heads	Levels	Hopper Capacity	Combination Weight	Weighing Accuracy	Max. Speed
MHW-04L	4	1	3L	20-2000g	0.2-2g	50 pouches/min
MHW-04S	4	1	0.5L	5-200g	0.2-1g	60 pouches/min
MHW-02L	2	1	15L	500-10000g	1-10g	20 pouches/min
MHW-02S	2	1	4.5L	100-3000g	0.5-3.0g	30 pouches/min
MHW-01S	1	1	4.5L	100-1500g	1.0-3.0g	15 pouches/min

How does the automatic premade pouch packaging machine handle different bag sizes?

Automatic premade pouch packaging machine features an intelligent color touchscreen system and modular design, enabling adaptation to a variety of bag sizes, with lengths ranging from 150-350 mm and widths from 100-250 mm. It allows rapid size change while minimizing space requirements.

What are the best practices for filling powder products using an automatic filling machine?

When filling powder products with an automatic filling machine, it is essential to select the appropriate filling mechanism, such as a screw filler or cup filler, to ensure precise measurement. Additionally, vibration and vacuum systems help reduce dust leakage, thereby improving both packaging efficiency and quality.

What considerations should be made when filling sauces to avoid spillage?

Paste filling machine is equipped with an intelligent control system and a downward-filling mechanism. An optional paste filling device ensures liquid level detection during the filling process, preventing overflow and reducing material waste.

How does the filling machine handle different particle sizes in granulated products?

Filling machines are equipped with multiple specialized filling devices and distributors capable of accommodating granulated products of various particle sizes. Combined with adjustable vibration and feeding systems, this ensures fast filling.
